Razor wire construction method

Views:0     Author:Site Editor     Publish Time: 2019-02-28      Origin:Site Inquire

Razor wire construction method

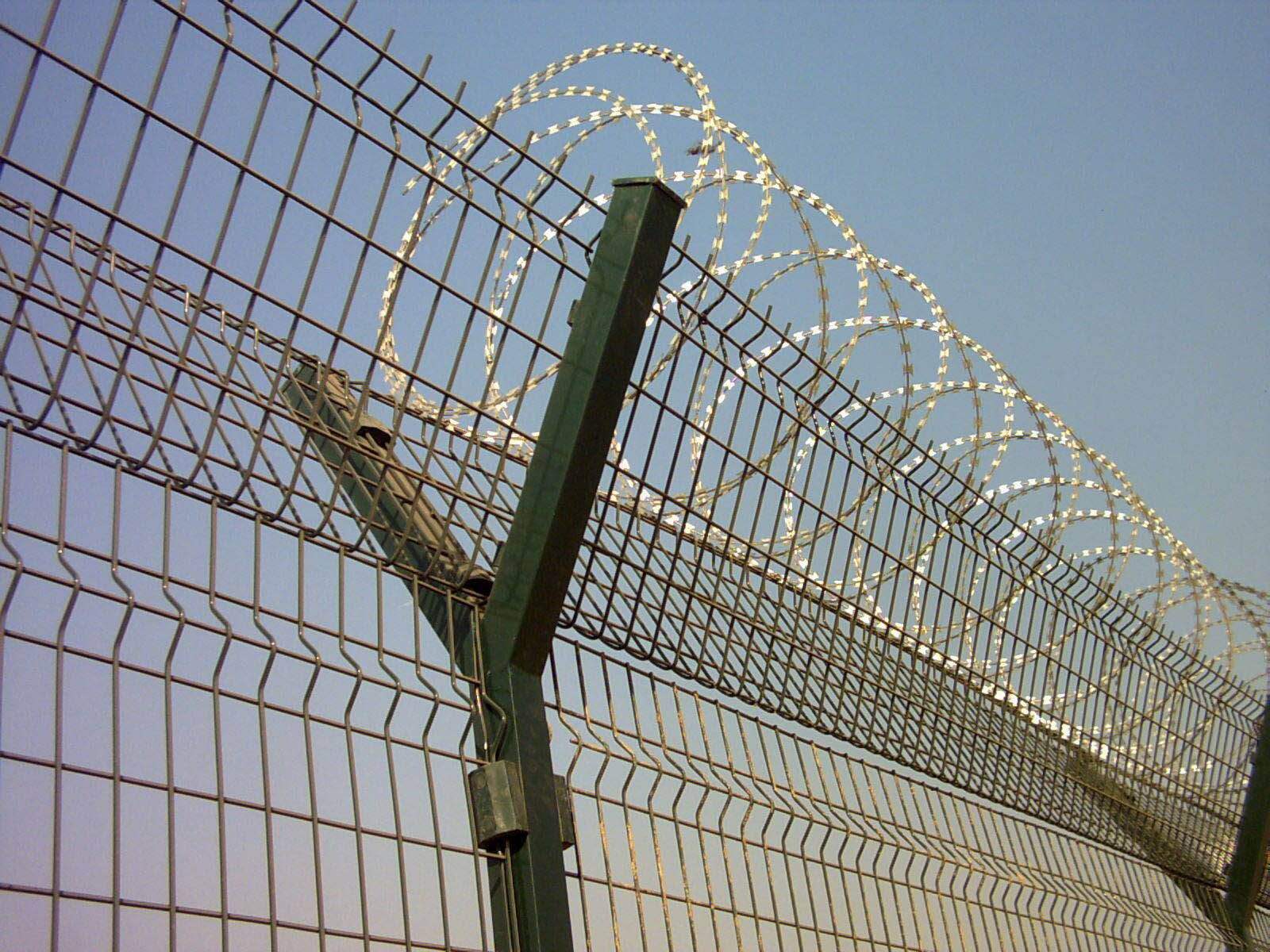

Razor wire

After the Razor wire is opened, the spacing of each crossover device shall be 20 cm and the diameter shall not be less than 45 cm. The Razor wire shall have a diameter of 50 cm after closing.

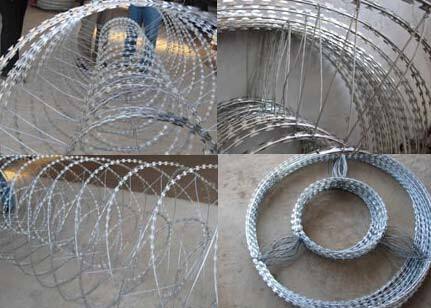

Razor wire

The longitudinal lacing and bracket connection of the Razor wire is fastened by Φ2.5 mm cold drawn galvanized steel wire.

The Razor wire bracket shall be placed in a column and mid-span position with a span of 3 m. The span is placed in the upper part of the column and the guard fence and bracket are connected by bracket hoops.

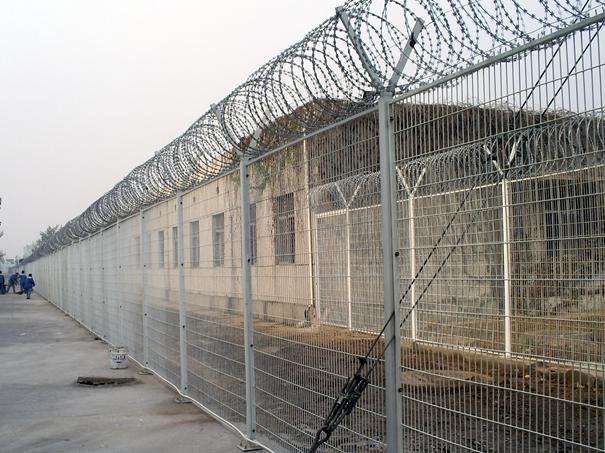

Razor wire

The lower edge of the Razor wire should be 5 cm from the upper edge of the reinforced concrete fence. The Razor wire is directly attached to the metal mesh and the wire by a Φ2.5 mm cold drawn galvanized steel wire or a barbed connection. .

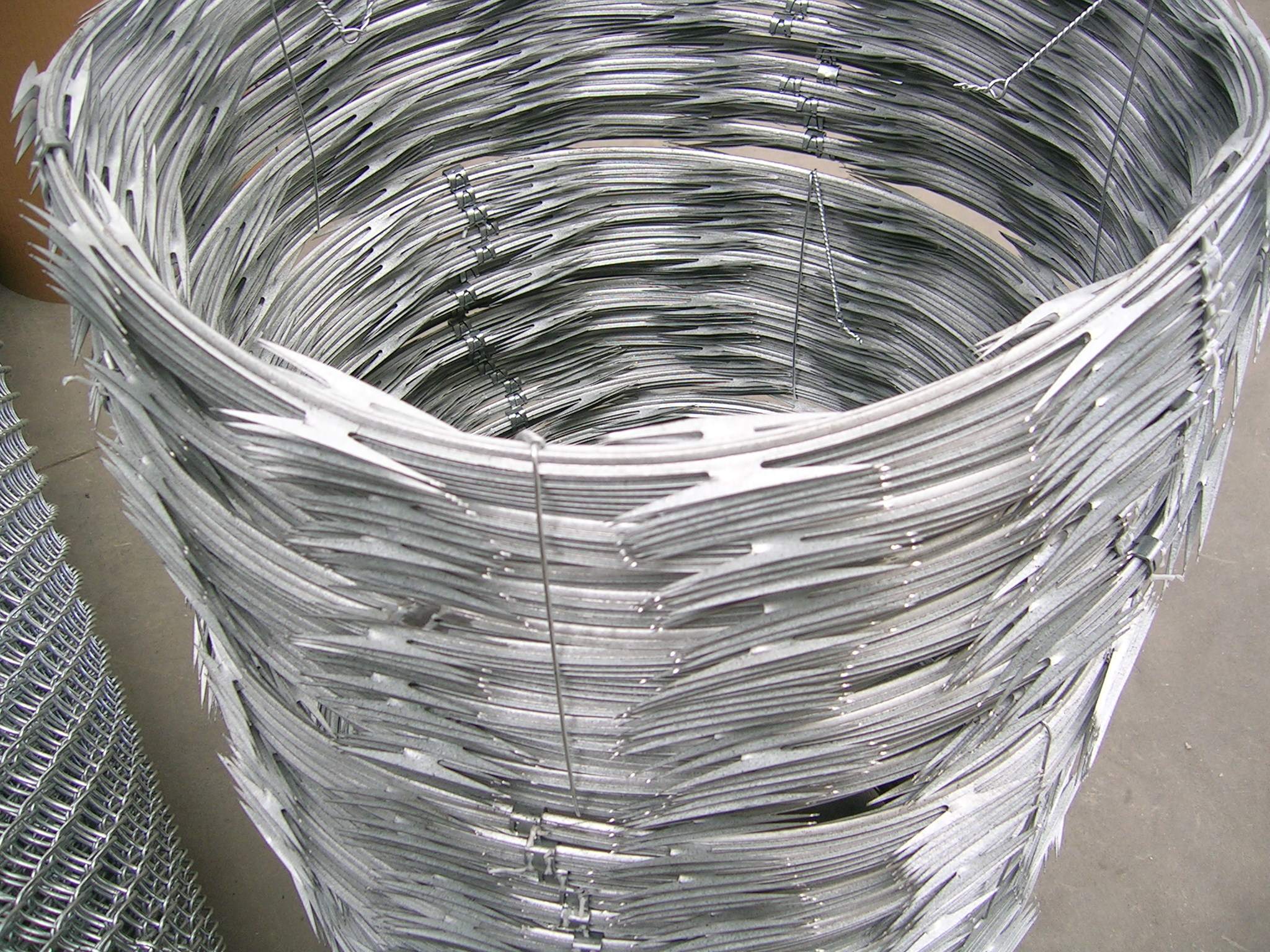

Razor wire
