Welded Wire Mesh

Welded Wire Mesh Processed automatically by the high-quality iron wire, the advanced welding craft is welded vertically and horizontally respectively at every intersect .

  • SHENGSEN
Quantity:

Product Description


Welded Wire Mesh Processed automatically by the high-quality iron wire, the advanced welding craft is welded vertically and horizontally respectively at every intersect .
The finished product is smooth and durable.
Welded Wire Mesh extensive for industry and agriculture building, traffic and mining industry.

Generally, the material is in Low carbon steel wire, stainless steel wire, etc.. And the welded type can be devided to be two kinds. First is welded first and then galvanizing.
The second is galvanized first and then welded.

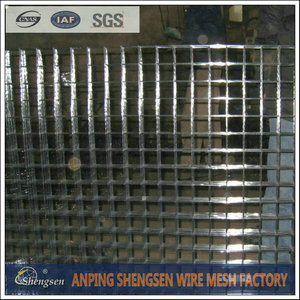

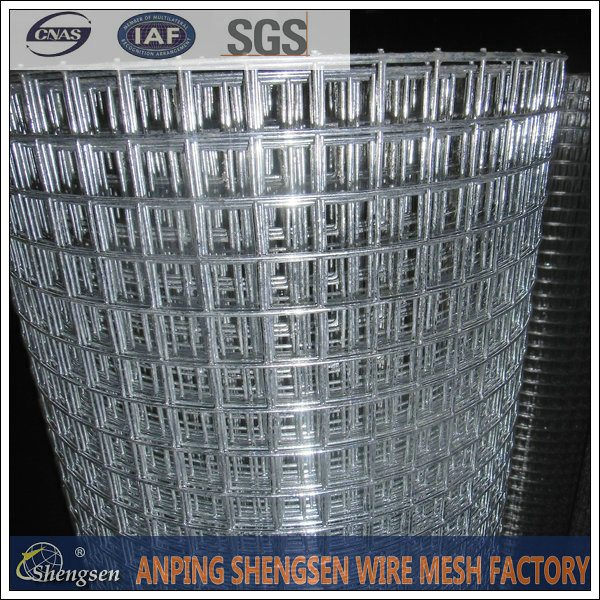

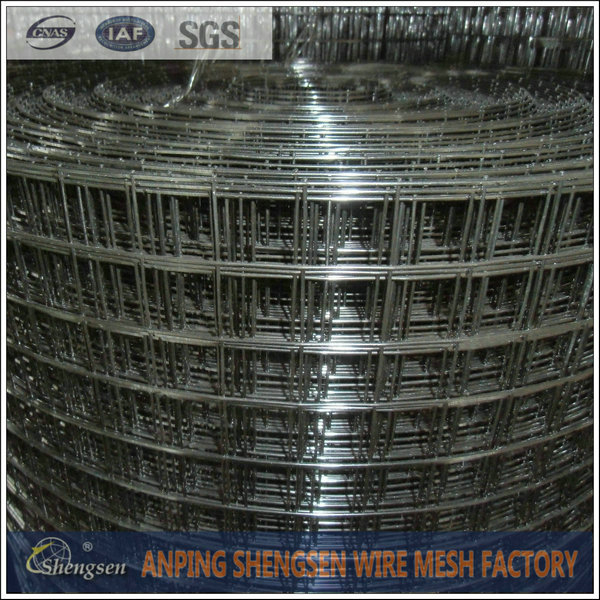

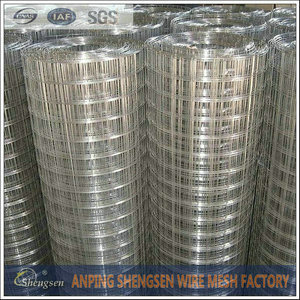

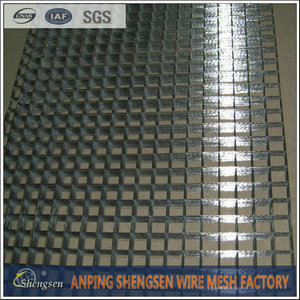

Welded Wire Mesh  Welded Wire Mesh  Welded Wire Mesh



Welded Wire Mesh  Welded Wire Mesh  Welded Wire Mesh

Specification:

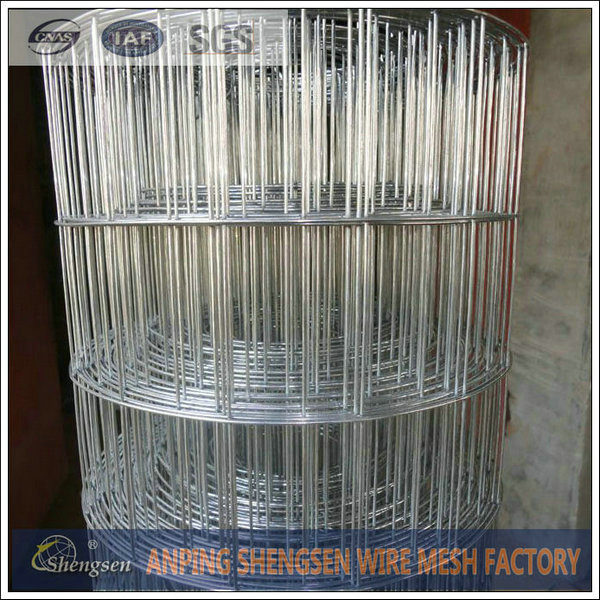

                Galvanized Welded Wire Mesh:
                Opening                 Wire Diameter
                In inch                 In metric unit(mm)
                2" x 3"                 50mm x 75mm                 2.0mm,2.5mm,1.65mm
                3" x 3"                 75mm x 756mm                 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
                2" x 4"                 50mm x 100mm                 2.11mm,2.5mm
                4" x 4"                 100mm x 100mm                 2.0mm,2.5mm

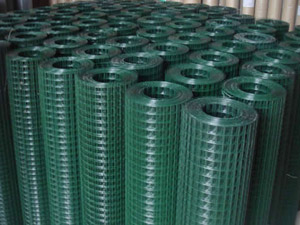

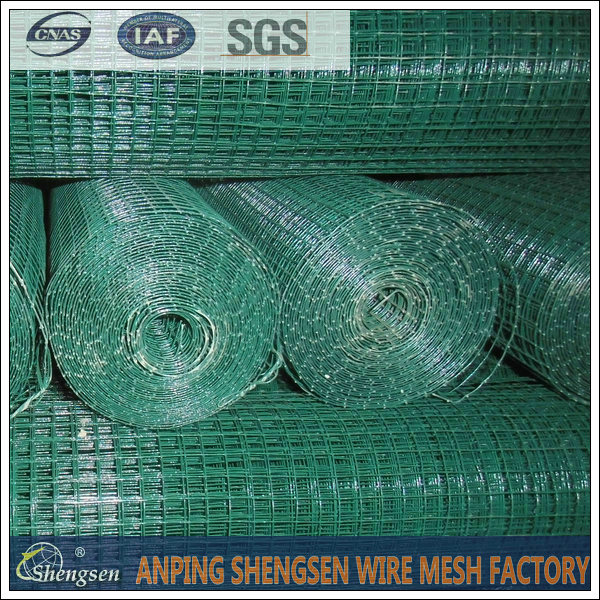

                    PVC CoatedWelded Wire Mesh:
                    Opening                     Wire Diameter
                    In inch                     In metric unit(mm)
                    1/2" x 1/2"                     12.7mm x 12.7mm                     16,17,18,19,20,21
                    3/4" x 3/4"                     19mm x 19mm                     16,17,18,19,20,21
                    1" x 1"                     25.4mm x 25.4mm                     15,16,17,18,19,20
                    Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.5m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.

                        Specification List of Welded Wire Mesh:
                        Opening                         Wire Diameter
                        In inch                         In metric unit(mm)
                        1/4" x 1/4"                         6.4mm x 6.4mm                         22,23,24
                        3/8" x 3/8"                         10.6mm x 10.6mm                         19,20,21,22
                        1/2" x 1/2"                         12.7mm x 12.7mm                         16,17,18,19,20,21,22,23
                        5/8" x 5/8"                         16mm x 16mm                         18,19,20,21,
                        3/4" x 3/4"                         19.1mm x 19.1mm                         16,17,18,19,20,21
                        1" x 1/2"                         25.4mm x 12.7mm                         16,17,18,19,20,21
                        1-1/2" x 1-1/2"                         38mm x 38mm                         14,15,16,17,18,19
                        1" x 2"                         25.4mm x 50.8mm                         14,15,16
                        2" x 2"                         50.8mm x 50.8mm                         12,13,14,15,16

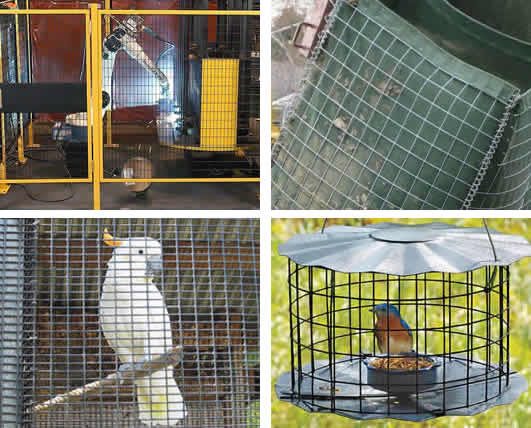

Applications:

Welded Wire Mesh general Use: used as fencing, decoration and machinery protection material in agriculture, construction,
transport, mine, sports field, lawn and various industrial fields.General Use: used as fencing, decoration and machinery protection material in agriculture,
construction, transport, mine, sports field, lawn and various industrial fields.

Welded Wire Mesh

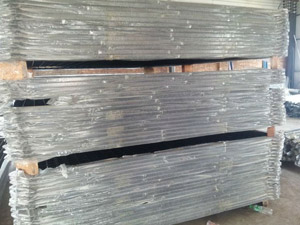

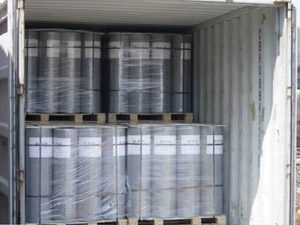

Packaging & Delivery:

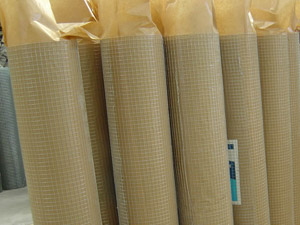

Packaging Details:    in waterproof paper or as your needs
Delivery Detail:    15-20days or as your requirments

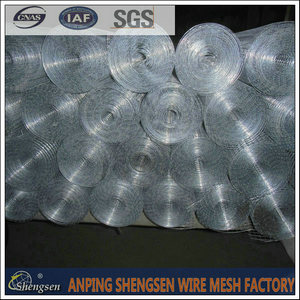

Welded Wire Mesh     Welded Wire Mesh

Welded Wire Mesh     Welded Wire Mesh
