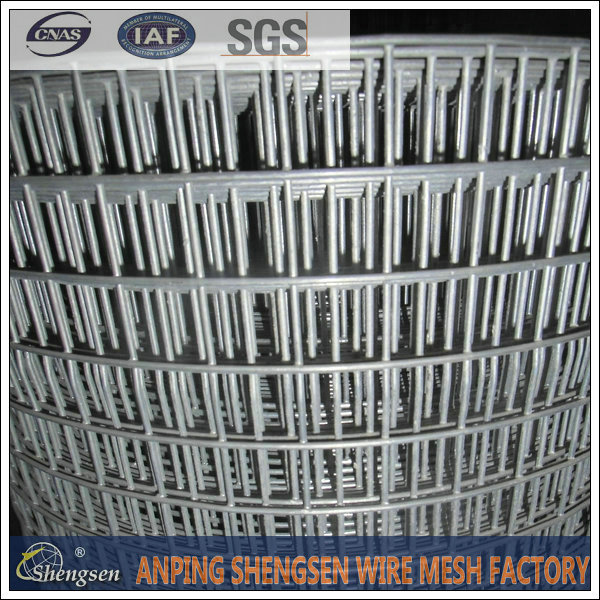

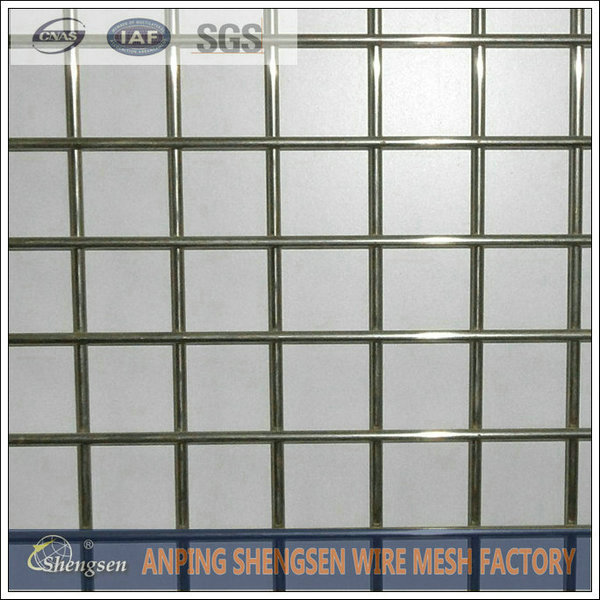

Welded wire mesh is having good corrosive resistance and qualities which are not usually found in average wire mesh.
Product discription
Wire Diameter: 0.5 - 2.5mm
Material: Low carbon steel, stainless steel wire
Processing: Galvanized after welding, Galvanized before welding
Opening: 1/4", 1/2", 3/4", 1", 1 1/2", 2", 1"*2"
Width: 0.5m - 2.0m
Length: 10m, 15m, 20m, 25m, 30m or as your requirement.

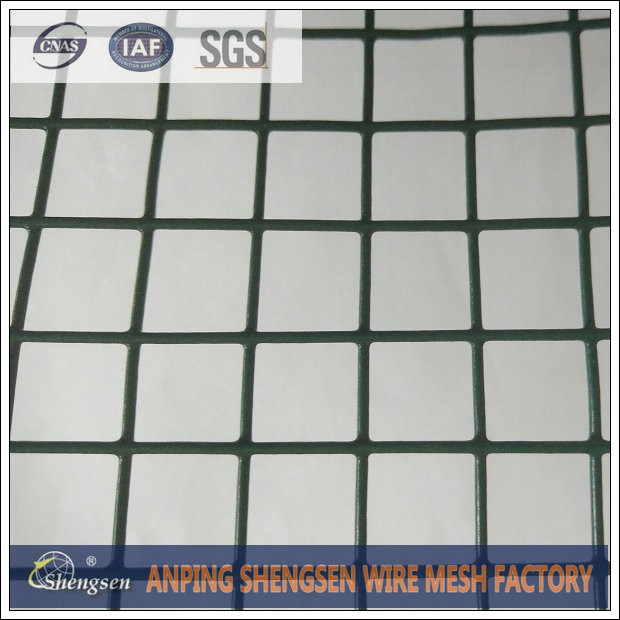

Surface treatment: electro galvanized, hot dipped galvanized and PVC coated etc.
Standard Welded Wire Mesh (in 30m length, Width of 0.5m-1.8m or as request) | ||
Mesh Hole sizes | Wire Gauge (BWG) | |
Inch | MM | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21 |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
1/4" x 1/4" | 6.4mm x 6.4mm | 12, 13, 14, 15, 16 |
Advantage:
It is widely used in industry, farming, construction, transportation and minig for protection of structure, safety segregation, keeping of poultry and livestock, and decorations etc.

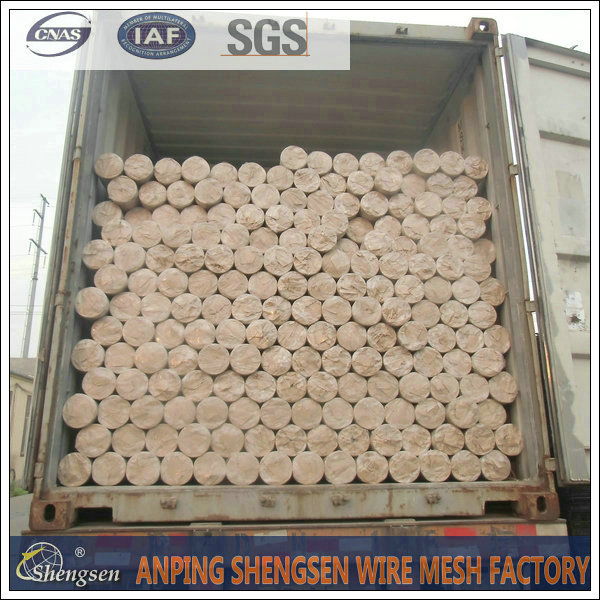

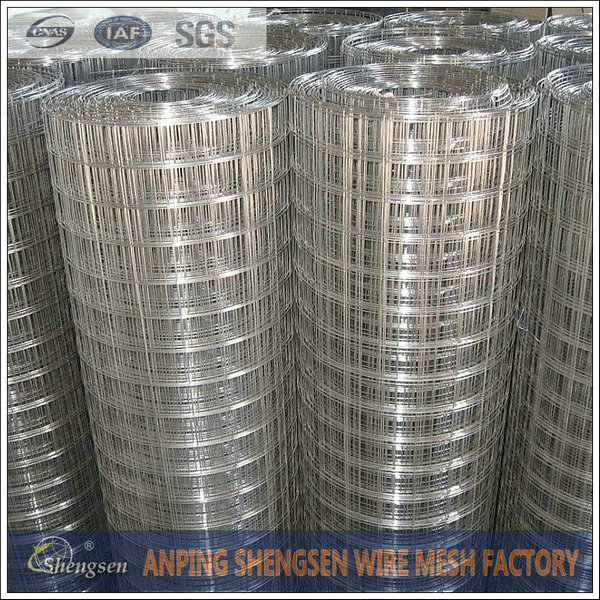

Packages:
Each roll wrapped with water proof paper or plastic shrink packing, cartons, pallets etc.
Hebei Shengsen Metal Products Co.,Ltd. is one of the
mesh in Anping, Hebei Province of China.
leading manufacturer of galvanized wire as well as wire
According to customer's requirement to provide the similar or the sample.
Specialize in customer’s design to meet your needs.
Customer feedback within 24-hours
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
More details,pls feel free to contact me. Email：shengsen@cnwire.org
