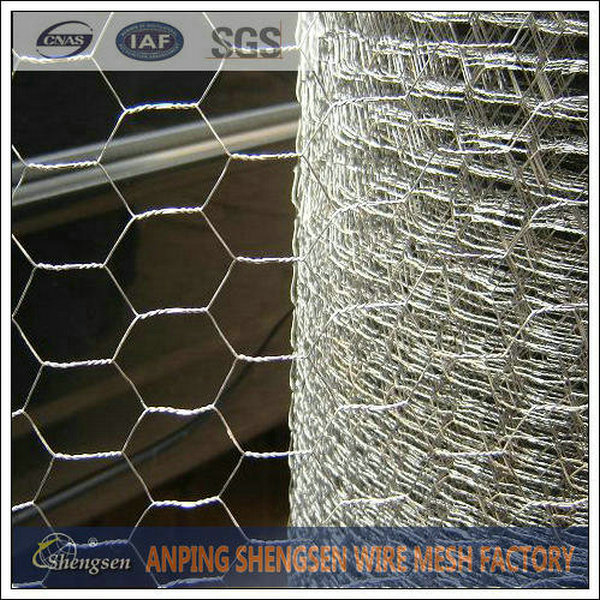

Chicken Wire Mesh

Chicken Wire also named as Hexagonal wire netting, manufactured in galvanised iron and galvanised iron drawn wire in the width from 0.6m to 2m.

  • SHENGSEN
  • Material:: Low carbon iron wire,Galvanized iron wire
  • Type:: Twist weave
  • Application:: Cages
  • Hole shape:: Hexagonal
  • Wire Dia.: : 0.4-1.5mm
  • Aperture:: 3/8"-2"
  • Width:: 0.5m-2m
  • Length:: 1-50m
  • Packing:: Waterproof paper then shrink film
Quantity:
 Product Description:

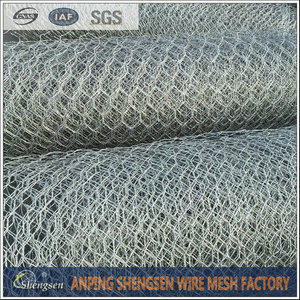

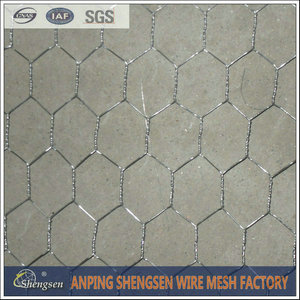

also named as Hexagonal wire nettingmanufactured in galvanized wire in the width from 0.6m to 2m.
Chicken Wire Mesh is mostly used as light fencing for poultry farms, birds cages and light reinforcement in splinter proof glass and cement concrete,
plastering and laying of roads. Also used for insulation in cold storage and AC plans.

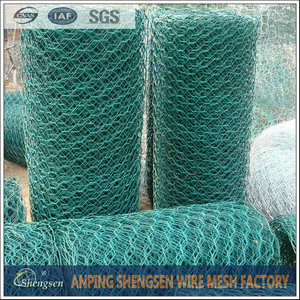

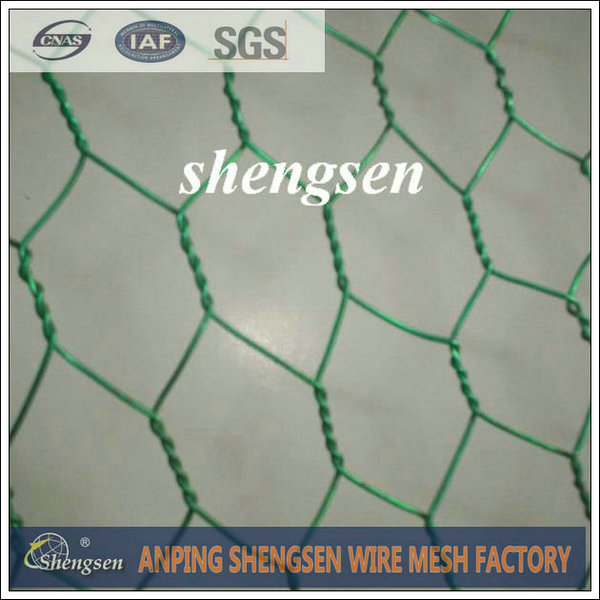

Series available are: Hot dipped Galvanized Chicken Wire Mesh, Electroplated Chicken Wire Mesh, and PVC coated Chicken Wire Mesh,
revers
e twisted Galvanized hexagonal wire netting with reinforcement, reverse twisted Plastic-coated hexagonal wire netting.

Specifications:
width:0.60\0.914m\1m\1.5m\2m
length:25m-50m/roll

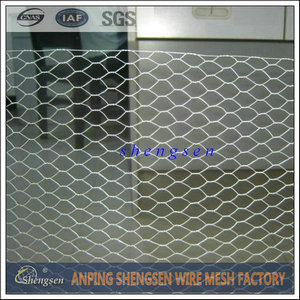

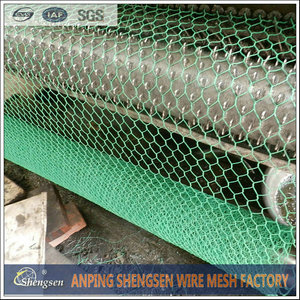

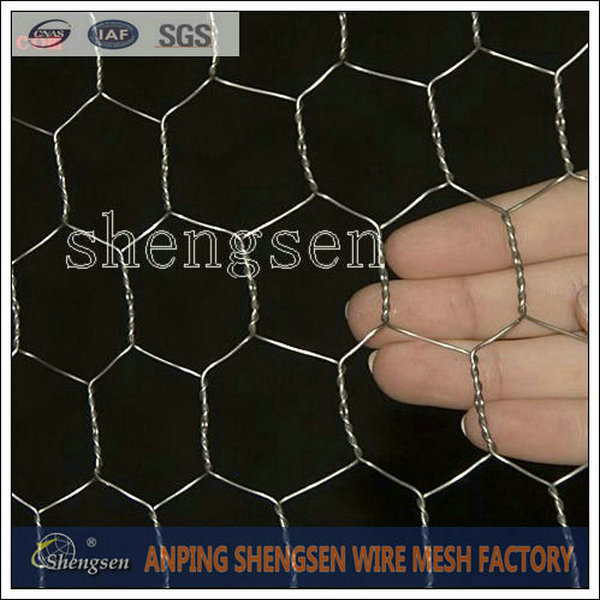

Chicken Wire Mesh     Chicken Wire Mesh

Chicken Wire Mesh     Chicken Wire Mesh

Chicken Wire Mesh     Chicken Wire Mesh

Specification:

Chicken Wire Mesh
mesh Min. Gal.v.
G/SQ.M
Width  Wire Gauge (Diameter)
BWG
Inch


mm Tolerance(mm)
3/8" 10mm ±1.0 0.7mm - 145 2' - 1M 27, 26, 25, 24, 23
1/2" 13mm ±1.5 0.7mm - 95 2' - 2M 25, 24, 23, 22, 21
5/8" 16mm ±2.0 0.7mm - 70 2' - 2M 27, 26, 25, 24, 23, 22
3/4" 20mm ±3.0 0.7mm - 55 2' - 2M 25, 24, 23, 22, 21, 20, 19
1" 25mm ±3.0 0.9mm - 55 1' - 2M 25, 24, 23, 22, 21, 20, 19, 18
1-1/4" 31mm ±4.0 0.9mm - 40 1' - 2M 23, 22, 21, 20, 19, 18
1-1/2" 40mm ±5.0 1.0mm - 45 1' - 2M 23, 22, 21, 20, 19, 18
2" 50mm ±6.0 1.2mm - 40 1' - 2M 23, 22, 21, 20, 19, 18
2-1/2" 65mm ±7.0 1.0mm - 30 1' - 2M 21, 20, 19, 18
3" 75mm ±8.0 1.4mm - 30 2' - 2M 20, 19, 18, 17
4" 100mm ±8.0 1.6mm - 30 2' - 2M 19, 18, 17, 16


Applications:

The  Chicken Wire  Mesh  can be used in fixed building walls, heat insulation. It is also used in power plant tie pipes and boiler warm.
Moreover, the net is antifreeze, used as residential protection, landscape protection.
Chicken Wire  Mesh  is applied in chicken and duck  to protect poultry.
At engineering, it protects and support the seawall, hillsides, road, bridge and other Mizuki engineering.

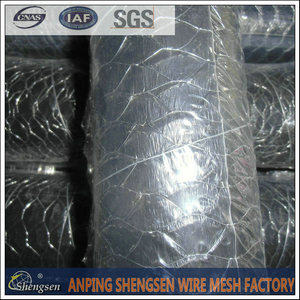

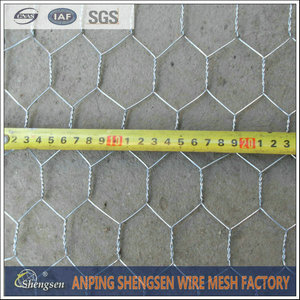

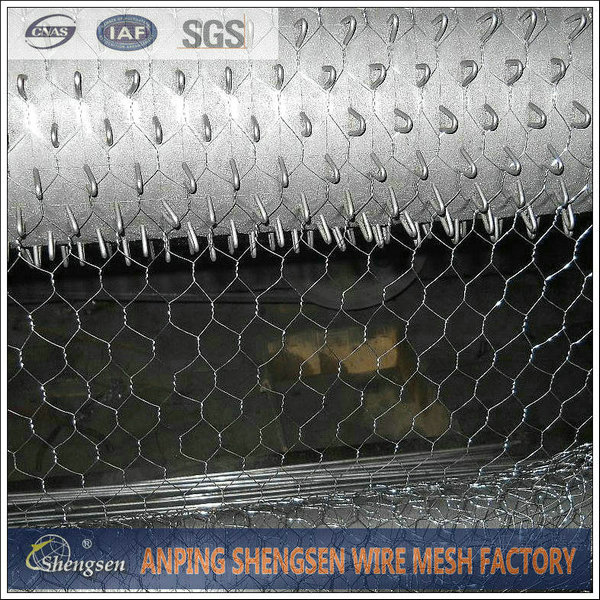

Chicken Wire Mesh    Chicken Wire Mesh

Chicken Wire Mesh    Chicken Wire Mesh

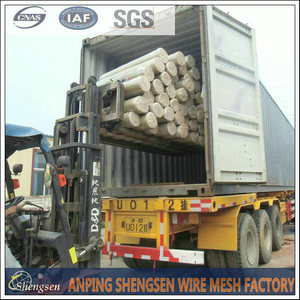

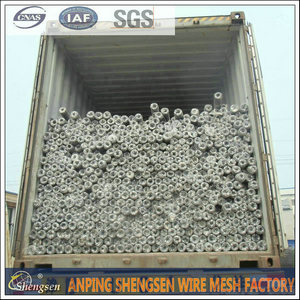

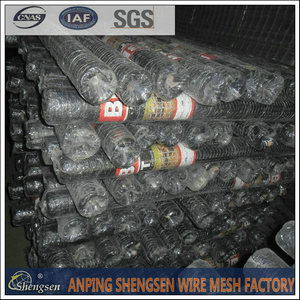

Packaging & Delivery:

Packaging Details:    Water-proofed paper,plastic film
Delivery Detail:    After 15 days of received the deposit

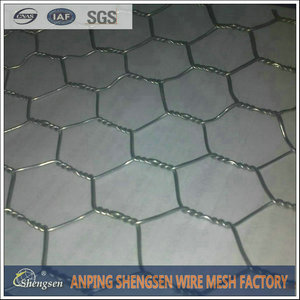

Chicken Wire Mesh    Chicken Wire Mesh

Chicken Wire Mesh    Chicken Wire Mesh
