High Ribbed Formwork

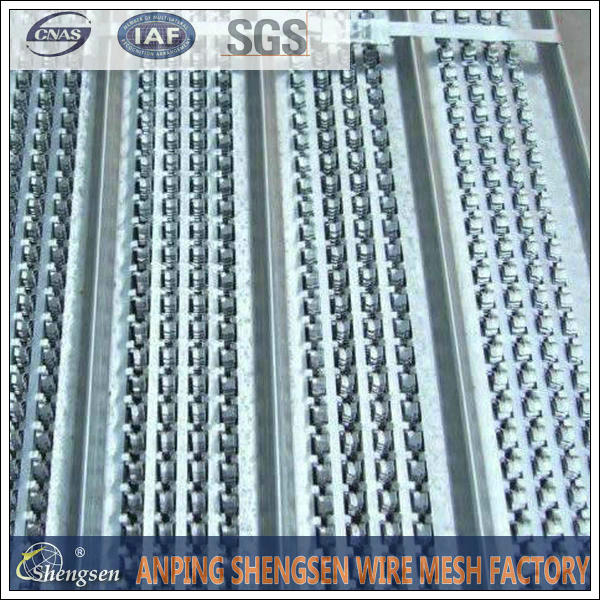

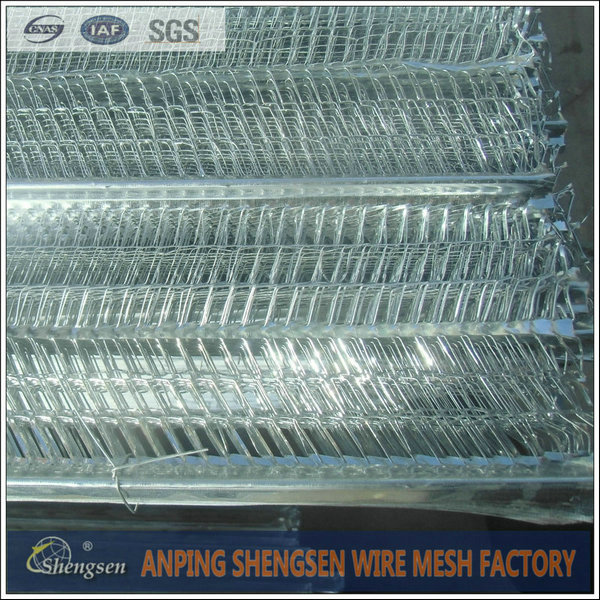

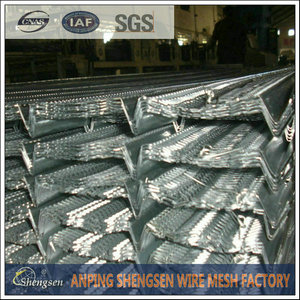

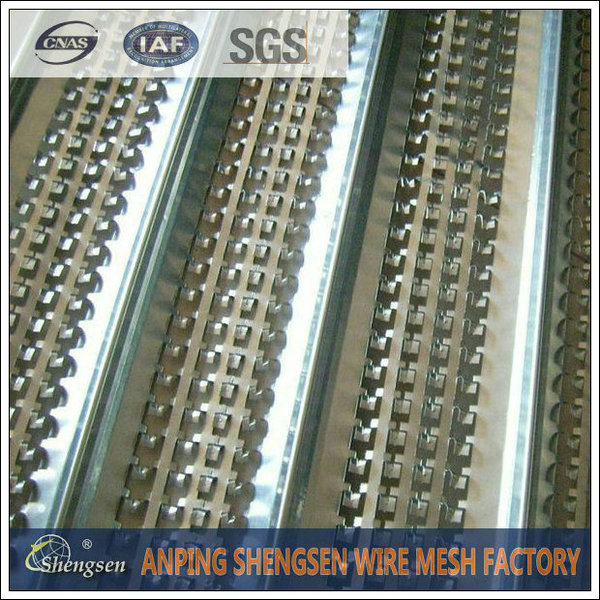

High Ribbed Formwork is manufactured from hot-dipped galvanized steel sheets.

  • SHENGSEN
Quantity:

High Ribbed Formwork is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns,
it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality,
construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls,
nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or
bending pattern etc. as concrete permanent assembly-free formwork.

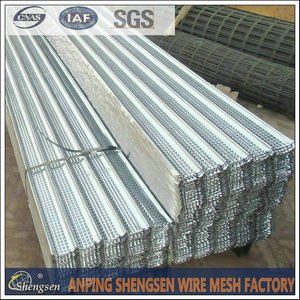

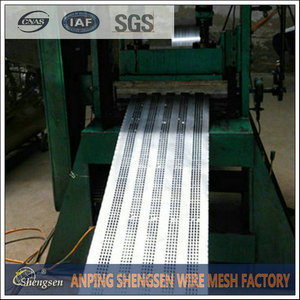

High Ribbed Formwork    High Ribbed Formwork

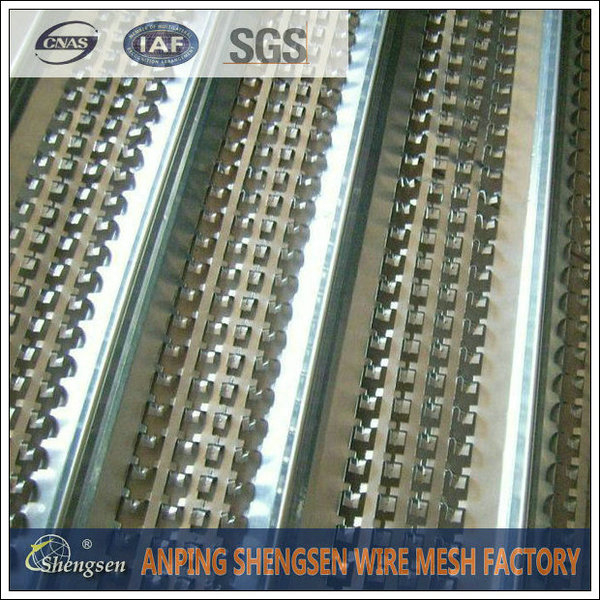

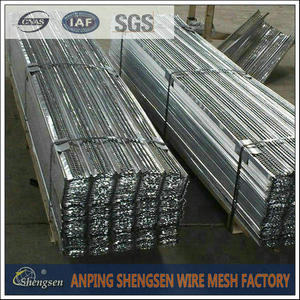

High Ribbed Formwork    High Ribbed Formwork

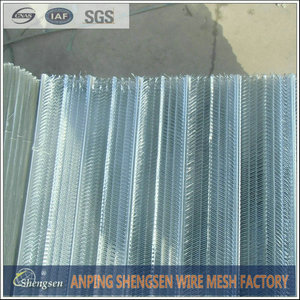

High Ribbed Formwork   High Ribbed Formwork


Specification:

Model Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance(mm)
021 0.21 1.70 450 2200 14-20 90
023 0.23 1.90 450 2200 14-20 90
030 0.30 2.48 450 2200 14-20 90
035 0.35 2.90 450 2200 14-20 90
040 0.40 3.30 450 2200 14-20 90
045 0.45 3.70 450 2200 14-20 90
050 0.50 4.10 450 2200 14-20 90

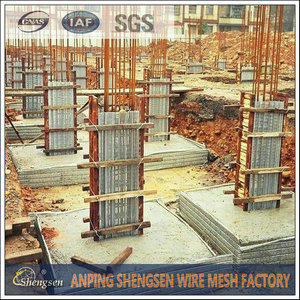

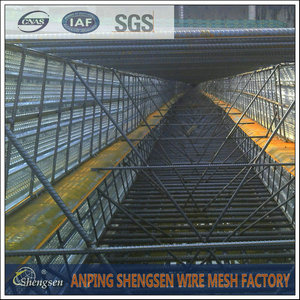

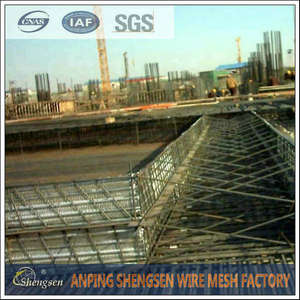

 Applications:

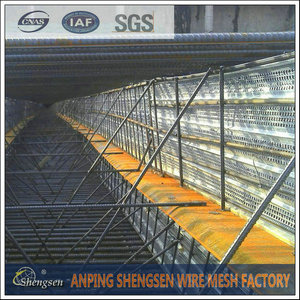

Our unbeatable quality hy ribbed mesh made in China is primarily used in construction joint applications but it is also used to form wall,
beam and column surfaces and slab soffits, where the formed surface will not be seen. It has also been used successfully for sprayed concrete applications.

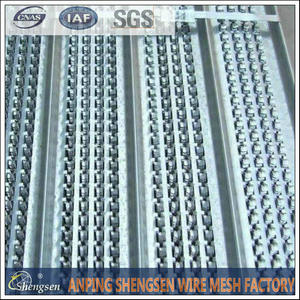

High Ribbed Formwork    High Ribbed Formwork

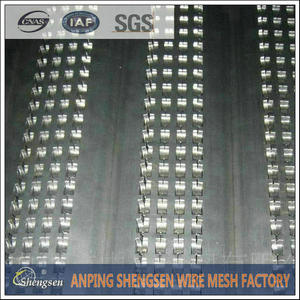

High Ribbed Formwork    High Ribbed Formwork

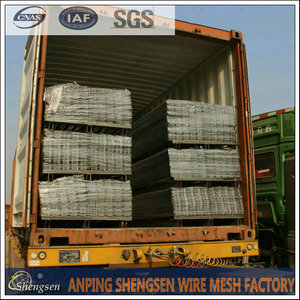

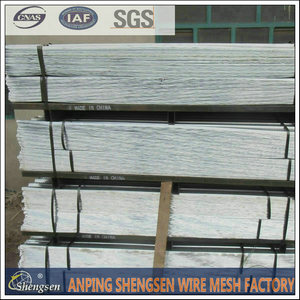

Packaging & Delivery:

Packaging Details:    20PCS in bundle, pallet
                                 or at your request
Delivery Detail:    5-25Working Days


High Ribbed Formwork    High Ribbed Formwork

High Ribbed Formwork    High Ribbed Formwork
