concertina wire

Razor barbed wire fence can be made according to the actual dimension of customer; the special specification is manufactured according to the drawing.

  • SHENGSEN
  • blade type: BTO-22,BTO-10,BTO-15,CBT-60,CBT-65
  • Surface treatment: hot dipped galvanized
  • Material: low carbon steel Q195
  • Thickness: 0.5mm
  • coil dia: 450mm,630mm,900mm
  • Coil weight: 6kg,11kg,13kg
  • covering length: 10m,12m 15m
  • Package: waterproof paper inside and weave bags outside
Quantity:



Product Description


Introduction

Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.



1. Materials:



Core Wire Materials:

Use the high- quality hot-dipped galvanized high carbon steel wire, hot-dipped galvanized medium carbon steel wire, stainless steel wire, etc.



Razor Wire Materials:

Use the high- quality hot-dipped galvanized steel sheet, stainless steel sheet.





2Blade Types:



concertina wire




3. Razor WireTypes:



(1)   Concertina Single Razor Wire



Concertina Single Coiling razor wire is installed without clips; it runs in natural loops on walls or fencings. Single coiling razor wire is costless and can be easily installed.



concertina wire





Specifications of Concertina Single Razor Wire



OD(mm)

No. of Loops

Standard Length

per Coil

Barb Type

Note

450mm

33

7-8m

CBT-60.65

Single coil

500mm

56

12-13m

CBT-60.65

Single coil

700mm

56

13-14m

CBT-60.65

Single coil

960mm

56

14-15m

CBT-60.65

Single coil





(2)   Concertina Cross Razor Wire



Concertina Cross razor wire is crossed razor wire. Two pieces of stainless steel razor wire or Zinc-coated Wire are bound together by clips to make it stronger.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.



concertina wire



Specifications of Concertina Cross Razor Wire



OD(mm)

No. of Loops

Standard Length per Coil

Barb Type

Note

450mm

56

8-9m (3 Clips)

BTO-10.12.18.22.28.30

Cross Type

500mm

56

9-10m (3 Clips)

BTO-10.12.18.22.28.30

Cross Type

600mm

56

10-11m (3 Clips)

BTO-10.12.18.22.28.30

Cross Type

600mm

56

8-10m (5 Clips))

BTO-10.12.18.22.28.30

Cross Type

700mm

56

10-12m (5 Clips)

BTO-10.12.18.22.28.30

Cross Type

800mm

56

11-13m (5 Clips)

BTO-10.12.18.22.28.30

Cross Type

900mm

56

12-14m (5 Clips)

BTO-10.12.18.22.28.30

Cross Type

960mm

56

13-15m (5 Clips)

BTO-10.12.18.22.28.30

Cross Type

980mm

56

14-16m (5 Clips)

BTO-10.12.18.22.28.30

Cross Type







 4. Characteristics



Razor wire With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.



5.Details



concertina wire

concertina wire





6.Common Uses :



1. the protection net in industry



2.agriculture,animal husbandy,dwelling houses



3.plantation of fencing,grass boudary



4. ranch and livestock farn, detention houses



5.railways and highways



6.barbed wire fence



Short sections needed for urgent security can be installed extremely fast and with little equipment, allowing repairs to be carried out without compromising perimeter security





concertina wire

concertina wireconcertina wire

Packaging & Shipping

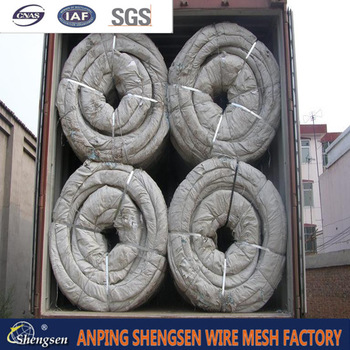

Packing:



Wrapped with plastic film outside with metal or wooden pallet, it also can made as customer's requirement.





Shipping:



 Shipping way: by express, by Air, by Sea etc.





Delivery Time



within 5-10 working days after receiving payment.





Sample service



Sample service is available for our company. And sample time is about 5- 7 days.





Customized service



Customized service is also available for us. We can customize products according to your requirements.





After-sales service



Our after-sales service start immediately after signing the contract.





concertina wire

 concertina wire
