production and sale of maccaferri gabion wire mesh for 20years

Views:1     Author:Site Editor     Publish Time: 2018-06-07      Origin:Site Inquire

GABIONS/GABION BASKET/GABION BOX/GABION CAGES



1,gabion Material:low carbon steel

Surface:

electro galvanized—15-20g/m2

hot dipped galvanized,—40-60g/m2

heavy galvanized,—240-260g/m2

Galfan wire—10Al with more than 240g zinc coating

pvc coated—dark green,grey and etc

Tensile strength:380-550N/mm2

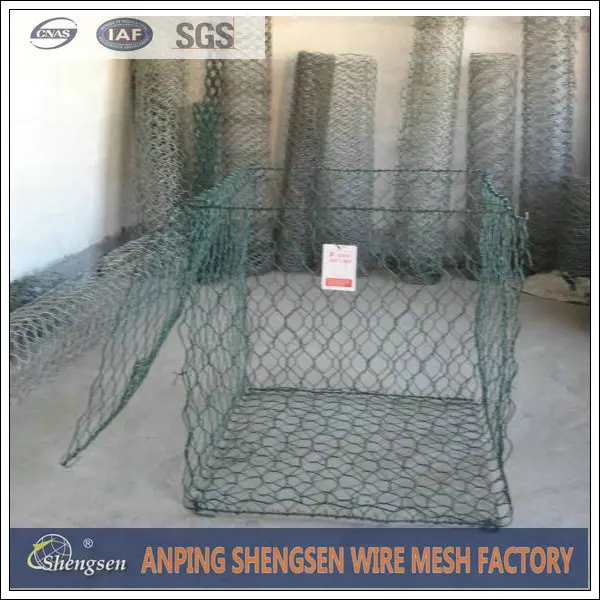

Crimped Wire Mesh130411-13656720002-744e0718

Crimped Wire Mesh



2,Gabion Wire diameter

Mesh wire dia:2.7mm,3.0mm

Selvage wire dia:3.4mm,3.9mm

Lacing wire dia:2.0mm,2.2mm (extra1.5%-2% of total weight included)

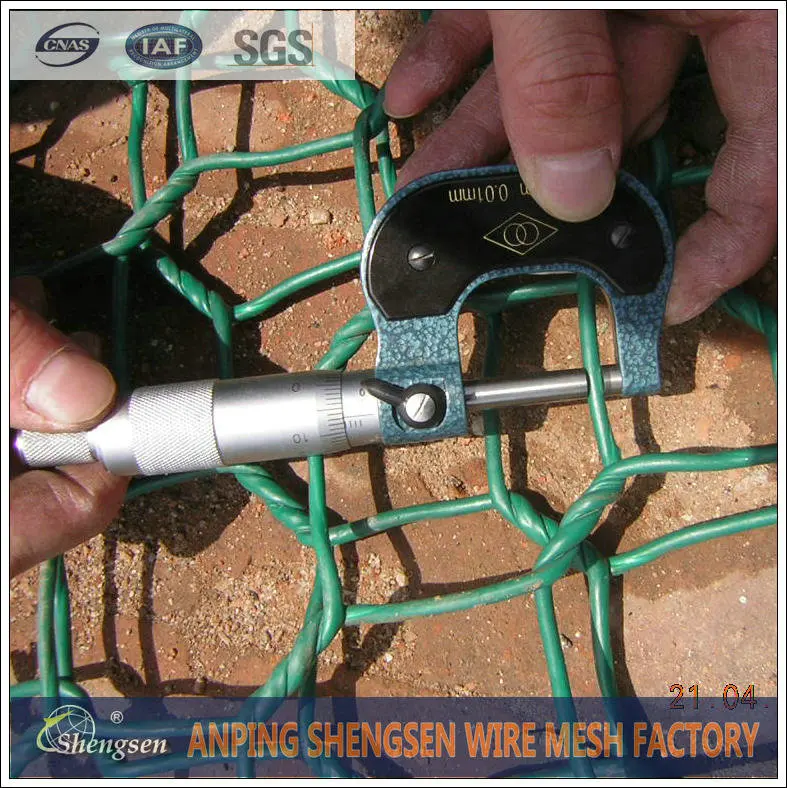

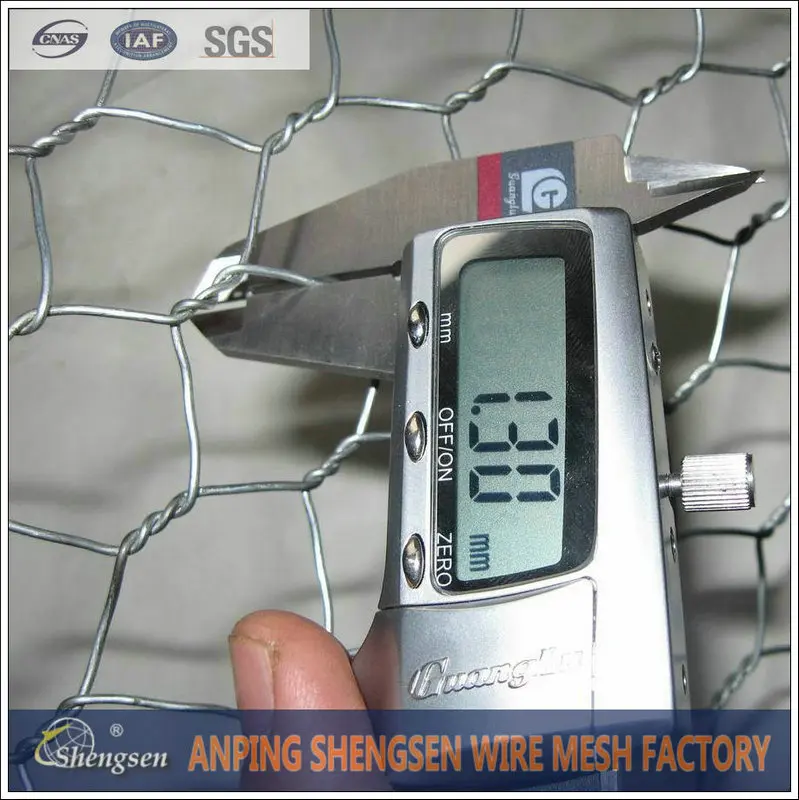

201109190505213ad8cc040eb4a423393ffbecaf9a9626



3,Gabion Mesh size/Aperture/Mesh Opening

60×80mm 100×120mm,70×90mm,90×110mm,90×130mm,120×150mm,160×180mm,200×250mm

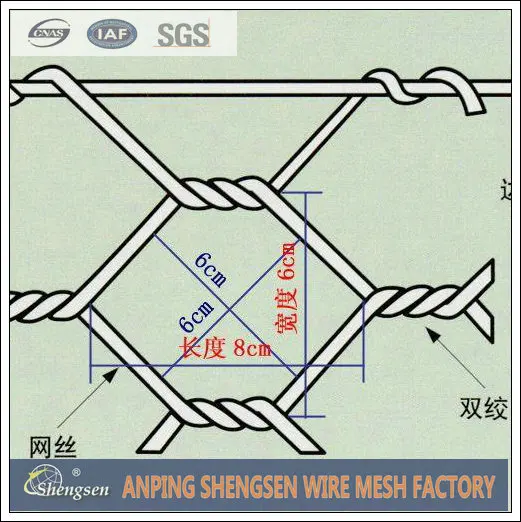

 (5)

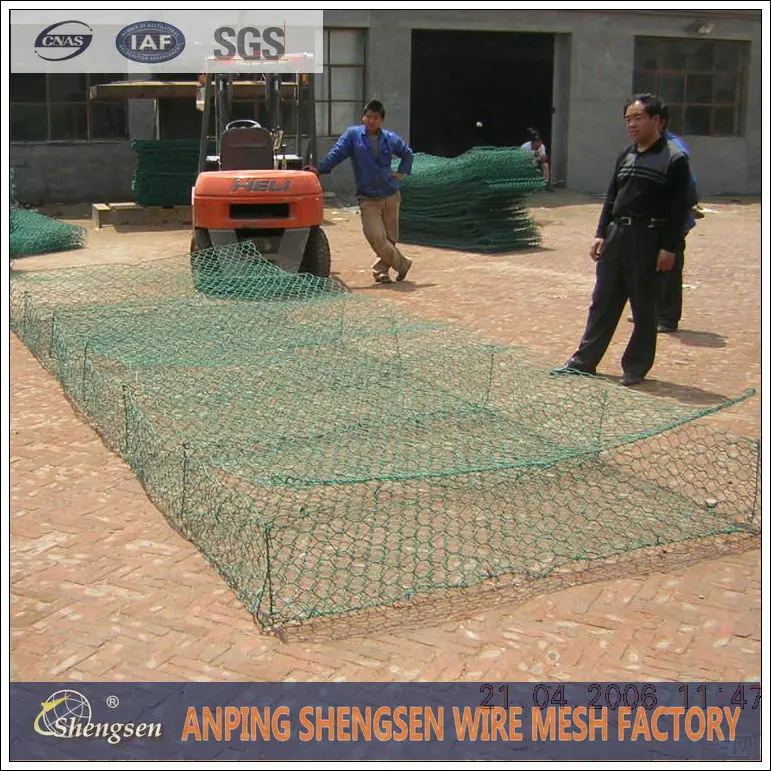

4,gabion size

Popular gabion size and special ones can be made customer sized

1m×1m*×1m without diaphragm

2m×1m*×1m with 1 diaphragm

3m×1m*×1m with 2 diaphragm

6m×1m*×1m with 5 diaphragm

x1_1_1367636460_1024_768_196114



5,Gabion Packing method and quantity per container

60-65PCS per compact bundle

13tons per 20ft container

26tons per 40ft container

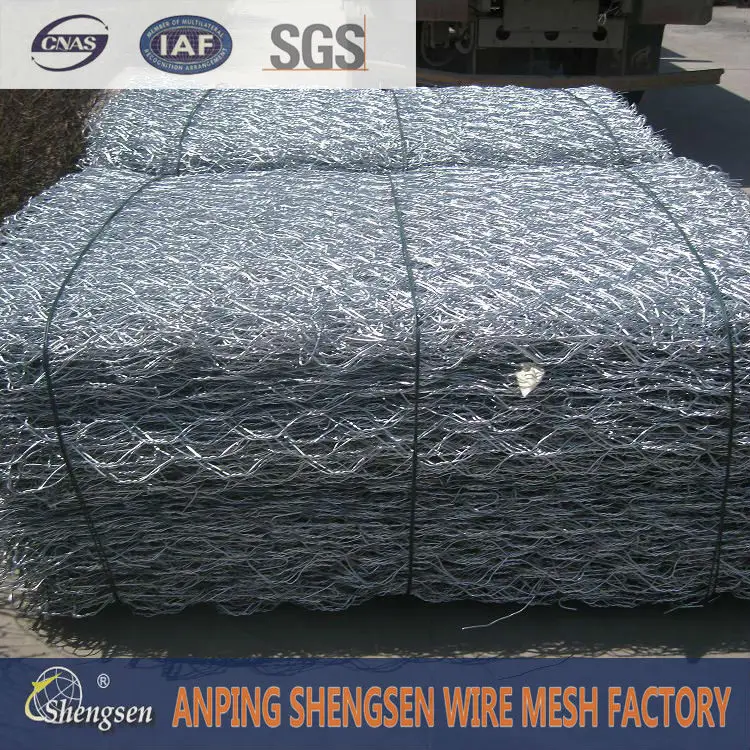

B3C2F2D822DBFA67D1F1FA9EF36BDA25SDC10004

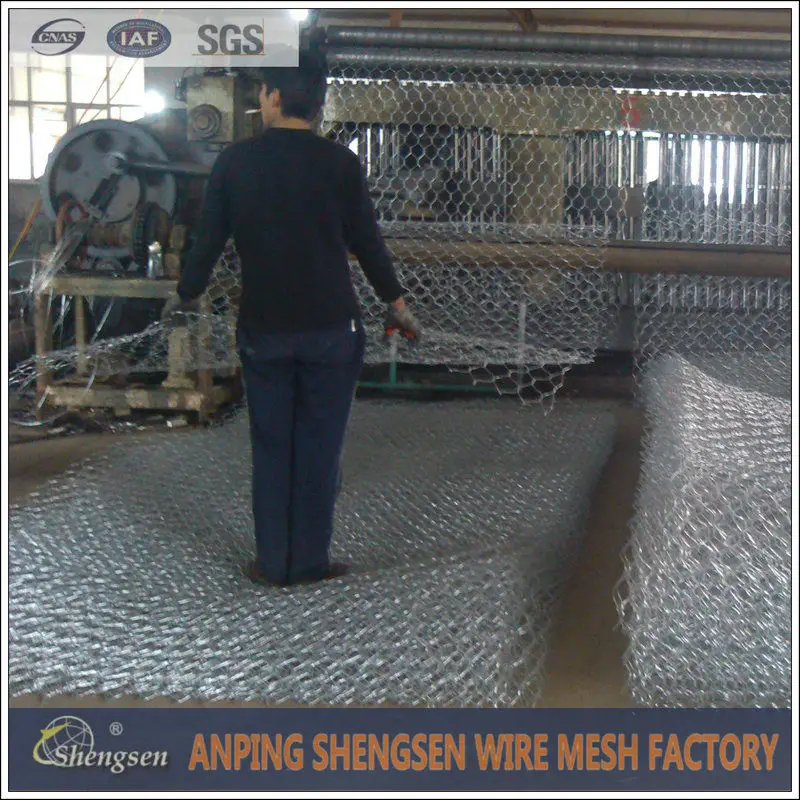

6,gabion production capacity and delivery time

There are more than 20 Sets of weaving machines,and daily output can be reach 20,000 square meters.So delivery time is usually within 20days after deposit.

5yxkhvOBF_1329100659 (33)

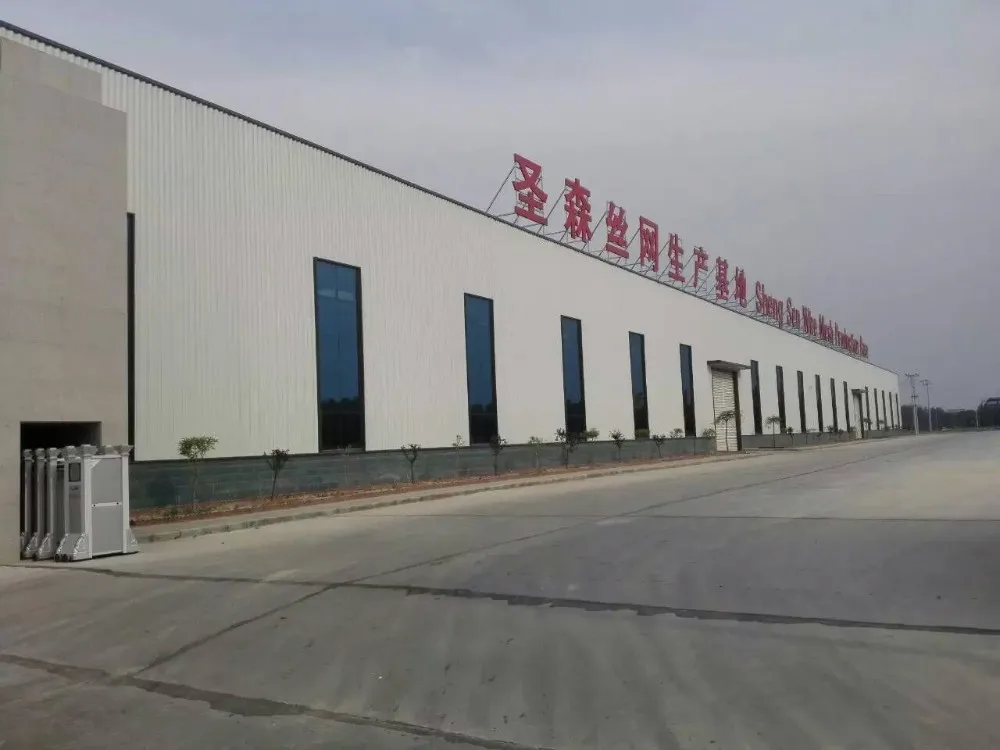

918115916302428967

iso 1
