Annealed Wire

Black iron wire more than ordinary soft, more flexibility, softness of color uniform, consistent.

  • SHENGSEN
  • Material: Q195
  • wire dia: 0.4mm-4.0mm
  • Tensile strength: 350-550N/MM2
  • Surface: oil painting
  • Coil weight: 25kg-100kg
  • Package: plastic inside and weave outside
Quantity:
Product Description:

Wire Materials: Iron wire or carbon steel wire.
annealed wire offers excellent flexibility and stiffness through the process of oxygen free annealing.
Technology: Black annealed wire material is normally provided by the Q195 type drawing rod into the black wire.The selected raw materials after 1000 degrees high temperature calcination keep enough time, then to appropriate cooling rate.The purpose is to reduce the hardness, improved machinability; elimination of residual stress, stable size, reduce the deformation and crack tendency; grain refinement, restructuring the organization, eliminate defects in the organization.
Characteristics: Black annealed wire more than ordinary soft, more flexibility, softness of color uniform, consistent.
Uses: Mainly used in building, mining, chemical industry, welding, welding, and then processing hanger.Annealed wire become soft, pliable degree increases, do construction tie wire, steel banding effect more.

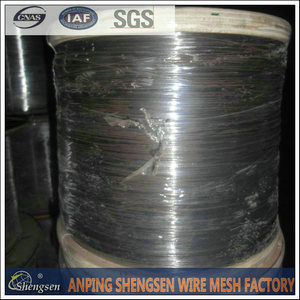

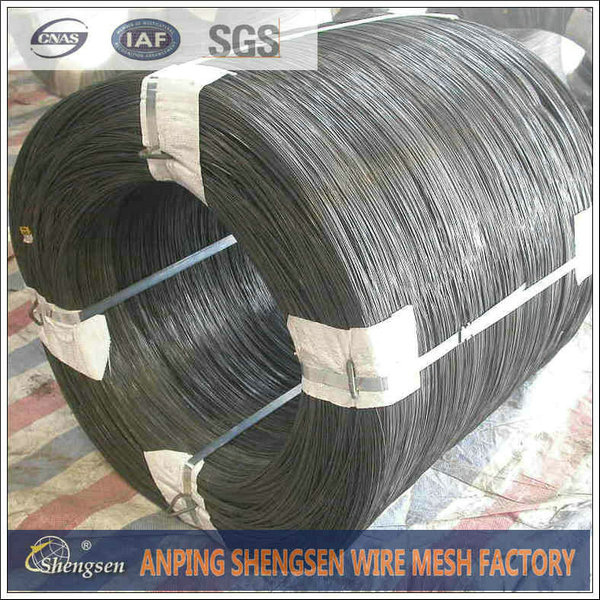

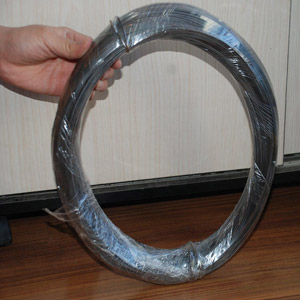

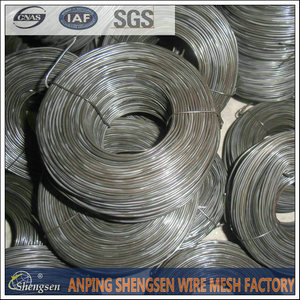

Annealed Wire     Annealed Wire

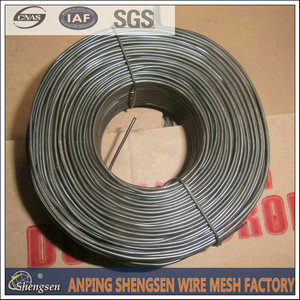

Annealed Wire     Annealed Wire

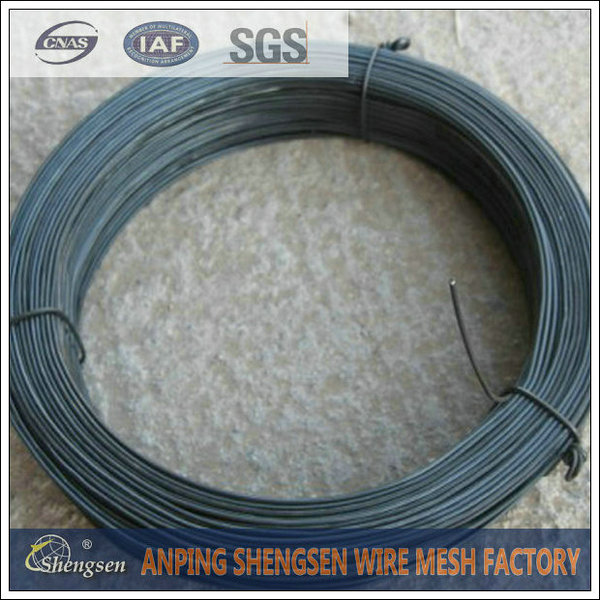

Annealed Wire     Annealed Wire

Specification:

Specification:
Wire gauge SWG(mm) BWG(mm) GB(mm)
8 4.06 4.19 4.00
9 3.66 3.76 --
10 3.25 3.40 3.50
11 2.95 3.05 3.00
12 2.64 2.77 2.80
13 2.34 2.41 2.50
14 2.03 2.11 --
15 1.83 1.83 1.80
16 1.63 1.65 1.65
17 1.42 1.47 1.40
18 1.22 1.25 1.20
19 1.02 1.07 1.00
20 0.91 0.89 0.90
21 0.81 0.813 0.80
22 0.71 0.711 0.70
23-37#are also supply

Applications:

It is mainly used in construction, mine industry, chemical industry, wire welding, clothes rack welding, reprocessing, etc.
It has quite good effects when being used as construction binding wire and assembling reinforcement.

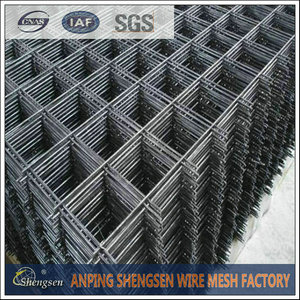

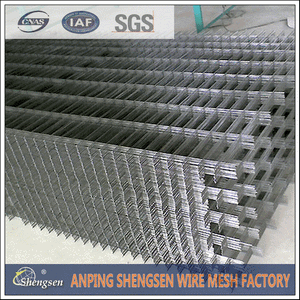

welded wire mesh     welded wire mesh

Packaging & Delivery:

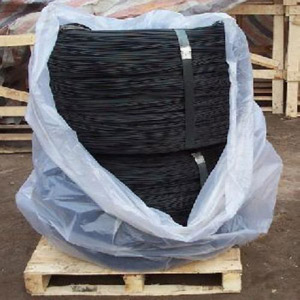

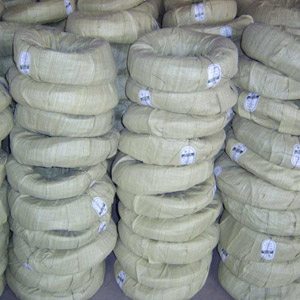

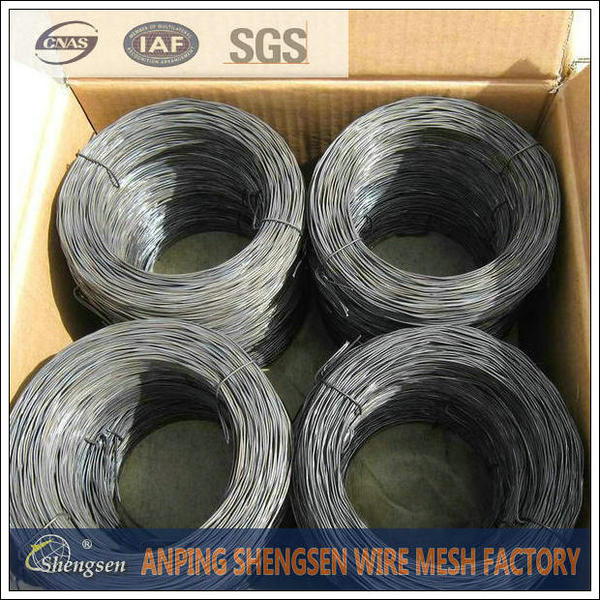

Packaging Details:    Inside with plastic film and outside with hessian or Inside with plastic file and outside with woven bag
Delivery Detail:    15days

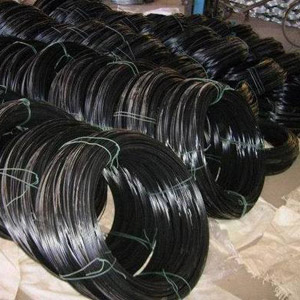

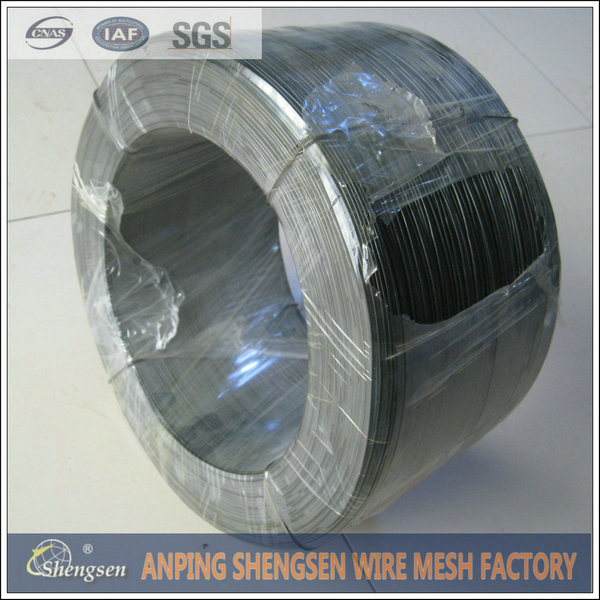

Annealed Wire      Annealed Wire

  Annealed Wire      Annealed Wire
