Fiberglass Mesh

fibergass mesh is widely used to reinforce cement, plastic, bitumen, plaster, marble, mosaics, roofing, interior and exterior walls, and in other industrial applications.

  • SHENGSEN

  • Material:: Fiberglass wire
  • Weight:: 60g/m2-350g/m2
  • Width:: 0.6m-2.0m
  • Length:: 1m-100m by negotiation
  • Opening Size:: 3x3mm, 4x4mm, 4x5mm, 5x5mm,6x6mm, 8x8mm, 10x10mm
  • Color:: blue, orange, white, yellow, etc.
  • Packing:: shrink film then carton or woven plastic bag.
Quantity:
Inquire Add to Basket
Product Description:

Fiberglass mesh is made by C-glass or E-glass fibers woven roving as its basis material, and then treated with Acrylic Acid Copolymer liquid. An ideal construction engineering material, Fiberglass Mesh fabric is mainly used to reinforce cement, plastic, bitumen, plaster, marble, mosaics, roofing, interior and exterior walls, and in other industrial applications.

Specifications:
Opening Sizes: 3x3mm, 4x4mm, 4x5mm, 5x5mm,6x6mm, 8x8mm, 10x10mm
Weight: 60 - 350g/m2
Width:1-2m
Color: blue, orange, white, yellow, etc.
Packing: shrink film then carton or woven plastic bag.

Features:
⊙Excellent alkaline resistance and corrosion resistance
⊙High tensile strength and impact resistance
⊙Good dimensional stability and deformation resistance
⊙Good adhesion with resins and water resistance
⊙Temperature stability and flame resistance
⊙Soft, flexible and well arranged, simple and easy to apply
⊙Resistance to aging
⊙Durable, versatile and cost-effective

Uses: fibergass mesh is widely used to reinforce cement, plastic, bitumen, plaster, marble, mosaics, roofing, interior and exterior walls, and in other industrial applications.

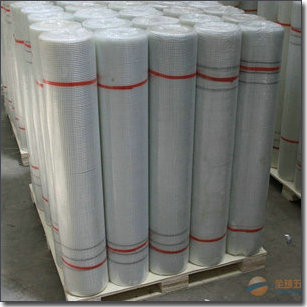

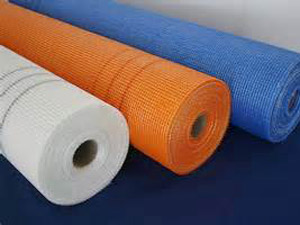

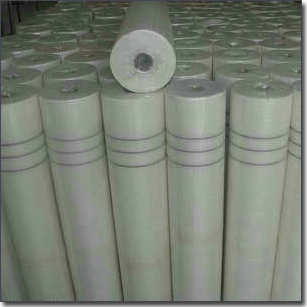

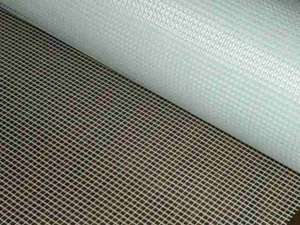

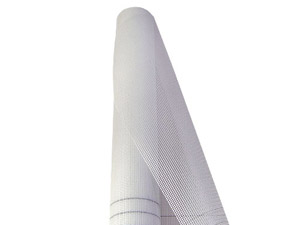

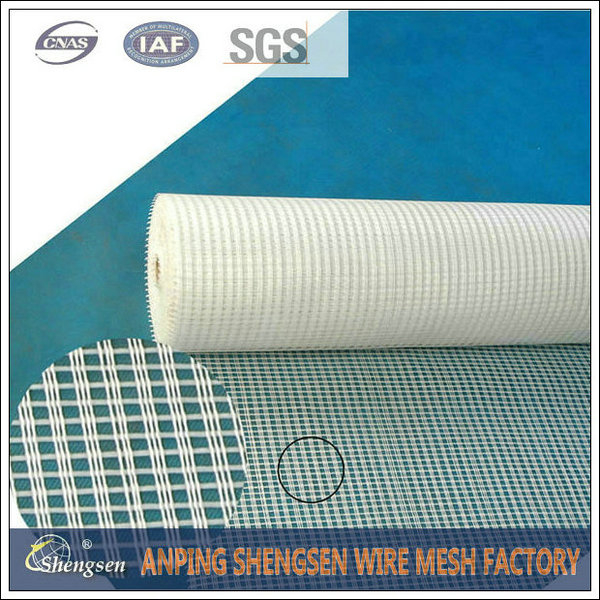

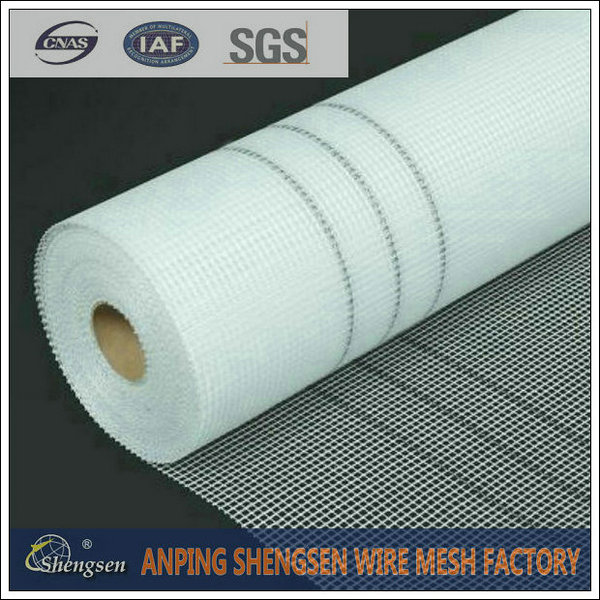

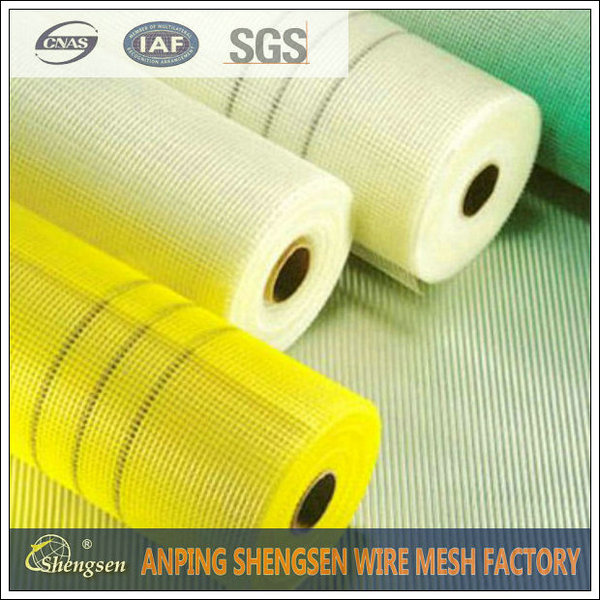

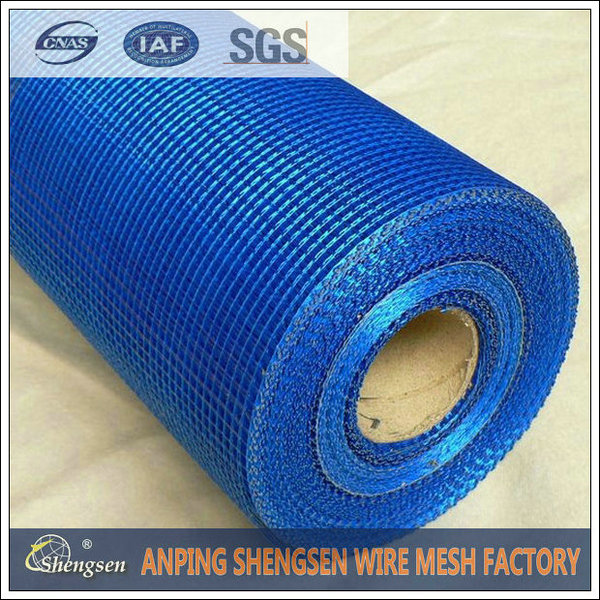

Fiberglass Mesh     Fiberglass Mesh

Fiberglass Mesh     Fiberglass Mesh

Fiberglass Mesh     Fiberglass Mesh

Specification:

  TECHNICAL  DATA  SHEET
                                                 Fiberglass Alkaline-Resistance Mesh
Item Number  Yarn(Tex) Mesh size(mm) Density Count/25mm  Finished weight(g/m2)  Tensile StrengthX20cm  Woven Structure  Content of resin%(≥)  Color
Warp Weft Warp Weft warp Weft Warp Weft
WS 5X5-70  45X2 200 5 5 5 5 7 0 550 850 Leno 16 Any
WS5X5-80 67X2 200 5 5 5 5 8 0 700 850 Leno 16 Any
WS 5X5-90 67X2 250 5 5 5 5 9 0 700 1050 Leno 16 Any
WS5X5-110 100X2 250 5 5 5 5 110 800 1050 Leno 16 Any
WS 5X5-125 134X2 250 5 5 5 5 125 1200 1300 Leno 16 Any
WS 5X5-135 134X2 300 5 5 5 5 135 1300 1400 Leno 16 Any
WS4X4-135 100X2 250 4 4 6 6 135 1000 1300 Leno 16 Any
WS 5X5-145 134X2 360 5 5 5 5 145 1200 1300 Leno 16 Any
WS 4X5-150 134X2 300 4 5 6 5 150 1300 1300 Leno 16 Any
WS 5X5-160 134X2 400 5 5 5 5 160 1450 1600 Leno 16 Any
WS 4X4-160 134X2 300 4 4 6 6 160 1550 1650 Leno 16 Any
WS 4X5-165 134X2 350 4 5 6 5 165 1300 1300 Leno 16 Any
WS5X5-250 134xX2 570 5 5 5 5 250 1700 2550 Leno 16 Any
WS4X5-300 134X2 800 5 5 5 5 300 1800 2700 Leno 16

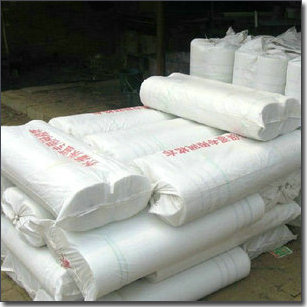

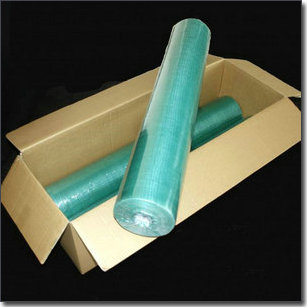

Packaging & Delivery：

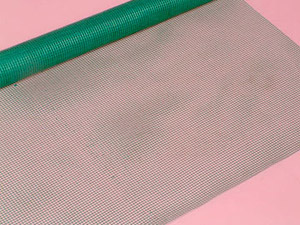

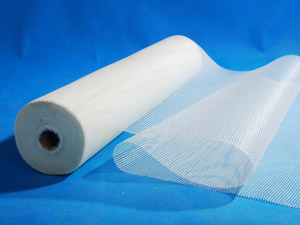

Fiberglass Mesh     Fiberglass Mesh

Fiberglass Mesh     Fiberglass Mesh
