Gabion Basket

Gabion box are rectangular woven wire mesh baskets filled with rock to form flexible, permeable, monolithic structures such as retaining walls for commercial, industrial and road projects.

  • SHENGSEN
  • Material:: Low carbon iron wire,Stainless steel wire
  • Type:: Weave
  • Application:: water protection
  • Hole shape:: Hexagonal
  • Surface Treatment:: Electro galvanized, Hot-dipped galvanized,PVC Coat
  • Wire Dia.:: 2.0mm-4.0mm
  • Opening:: 60*80mm,80*100mm,100*120mm
  • Packing:: in bundle or pallets
  • Size:: 2*1*1m,2*1*0.5m,3*1*0.5m etc. by negotiation
Quantity:
Product Description:

Gabion baskets are made into rectangular box with woven wire mesh filled with stones to form flexible, permeable,
monolithic structures such as retaining walls for commercial, industrial and road projects. They are also used for erosion control,
 bank stabilization, architectural and urban design features, noise attenuation structures and weirs.


Material: hot dip galvanized wire, PVC coated wire, low carbon steel wire.

Feature:
* Economic. Just fill the stone into the gabion and seal it.
* Simple installation. No special technology needed.
* Weather proof under natural destroys and corrosion resistant.
* No collapse even under big scope of deforming.
* Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
* Good permeation can prevent the damage by hydrostatic.
* Less transport freight. It can be folded together for transport and further installation.

Application:
* Control and guide of water or flood
* Flood bank or guiding bank
* Preventing of rock breaking
* Water and soil protection
* Bridge protection
* Strengthening structure of soil

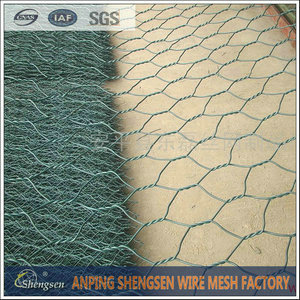

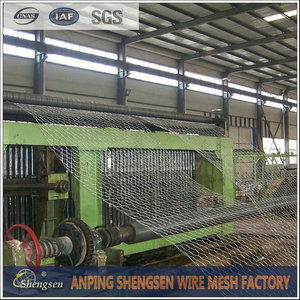

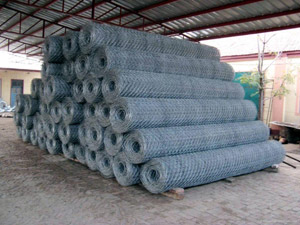

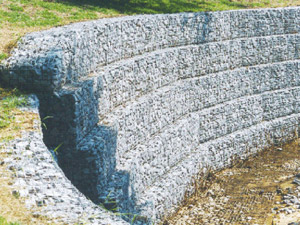

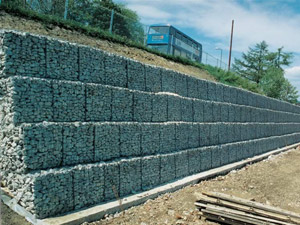

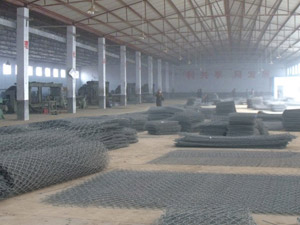

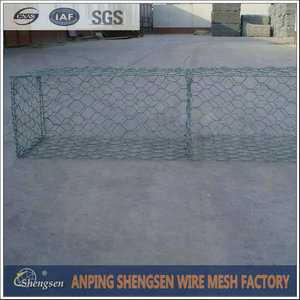

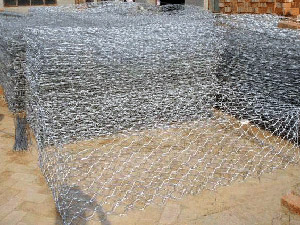

Gabion Basket     Gabion Basket

Gabion Basket     Gabion Basket

Gabion Basket     Gabion Basket

Specification:

Hexagonal Wire Netting Gabions
opening (mm) Body wire  (mm) Edge wire  (mm) Lacing wire  (mm) Max width
60x80 2.0-2.8 3.0-4.0 2.0-2.2 4m
80x100 2.0-3.0 3.0-4.0 2.0-2.2 4m
80x120 2.0-3.0 3.0-4.0 2.0-2.2 4m
100x120 2.0-3.0 3.0-4.0 2.0-2.2 4m
100x150 2.0-3.0 3.0-4.0 2.0-2.2 4m
120x150 2.0-3.0 3.0-4.0 2.0-2.2 4m

Gabions'Sizes
length(m) Width (m) Height(m) Diaphragm Tolerance
2.0  1.0  0.15-0.3 1 Length:+/-3% Width:+/-5% Height:+/-5%
3.0  1.0  0.15-0.3 2
4.0  1.0  0.15-0.3 3
2.0  1.0  0.5 1
3.0  1.0  0.5 2
4.0  1.0  0.5 3
1.0  1.0  1.0  0
1.5 1.0  1.0  0
2.0  1.0  1.0  1
3.0  1.0  1.0  2
4.0  1.0  1.0  3
Note:we can do as per customer's request


Applications:

Widely Application
Gabion mesh is known as by different shape of gabion box,gabion basket, gabion wall, gabion mattresses, etc.
It is hexagonal wire netting and can be finished by hot-dipped  galvanized, galvanized aluminum alloy or PVC coated.

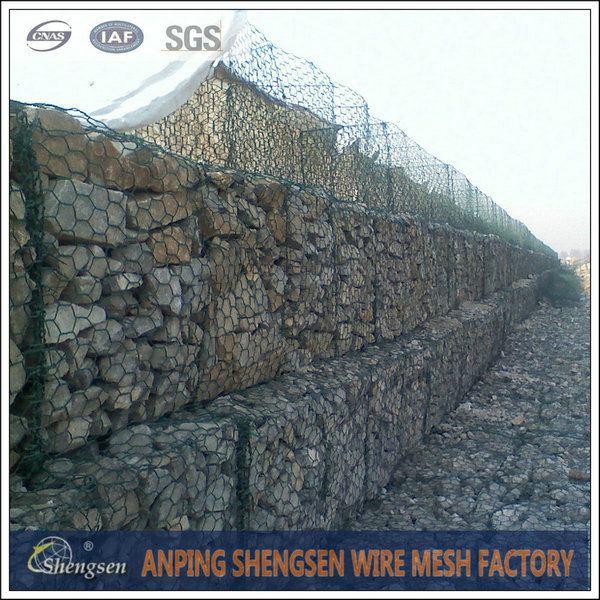

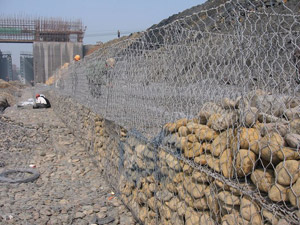

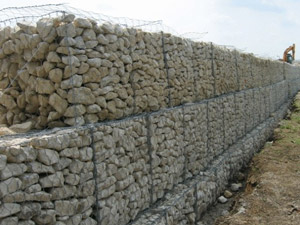

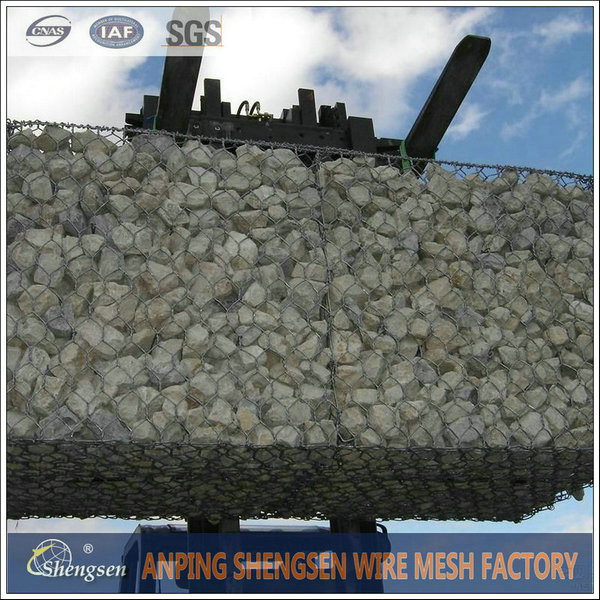

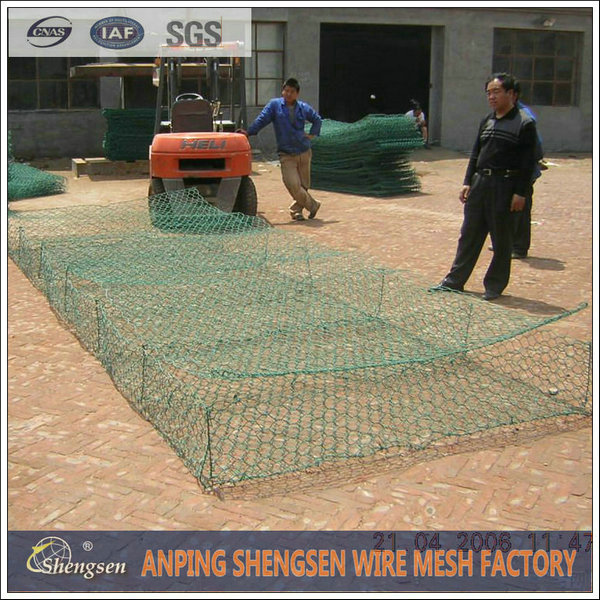

Gabion Basket      Gabion Basket

Gabion Basket      Gabion Basket


Packaging & Delivery:

Packaging Details:     100pieces into a bundle, plastic coated on a pallet or as requested
Delivery Detail:    Within 7 days after the deposit

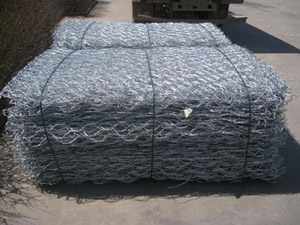

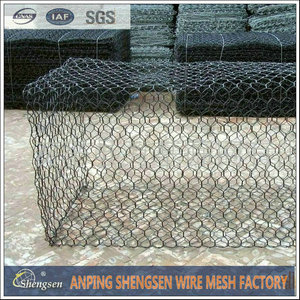

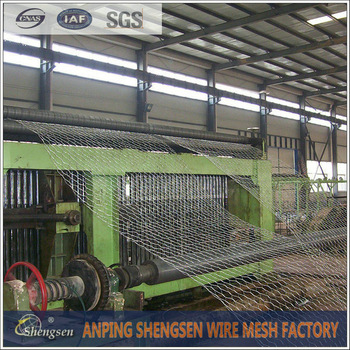

Gabion Basket      Gabion Basket

Gabion Basket      Gabion Basket
