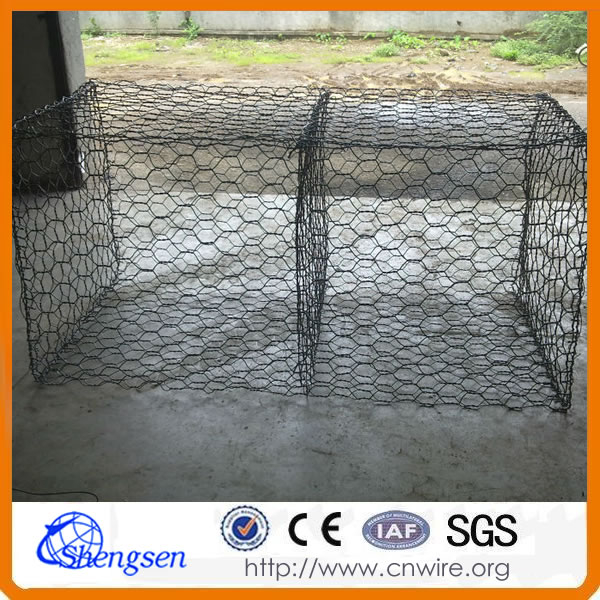

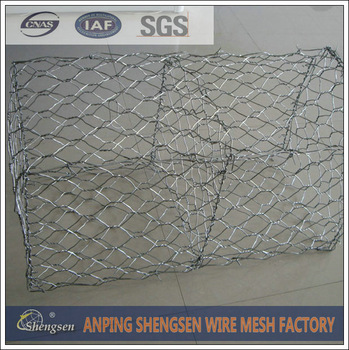

Galvanized Gabions

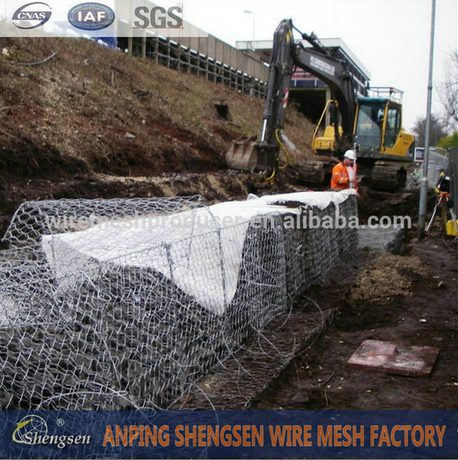

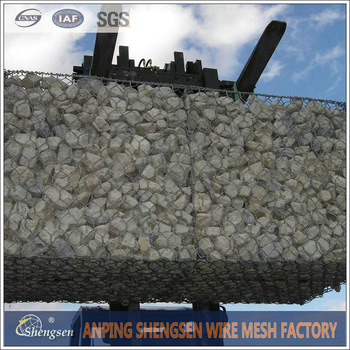

Gabion box are rectangular woven wire mesh baskets filled with rock to form flexible, permeable, monolithic structures such as retaining walls for commercial, industrial and road projects.

  • SHENGSEN
  • Material:: Low carbon iron wire,Stainless steel wire
  • Type:: Weave
  • Application:: water protection
  • Hole shape:: Hexagonal
  • Surface Treatment:: Electro galvanized, Hot-dipped galvanized,PVC Coat
  • Wire Dia.:: 2.0mm-4.0mm
  • Opening:: 60*80mm,80*100mm,100*120mm

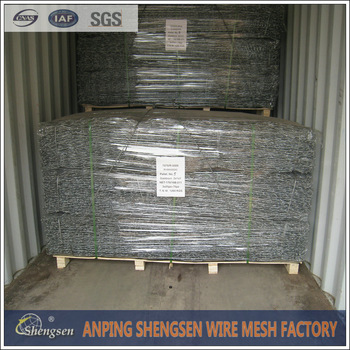

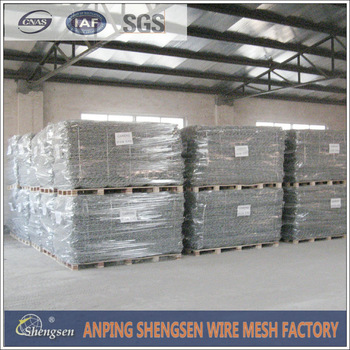

  • Packing:: in bundle or pallets
  • Size:: 2*1*1m,2*1*0.5m,3*1*0.5m etc. by negotiation
Quantity:

Gabions

1.Materials: hot dipped galvanized wire and PVC coated galvanized wire

2.Mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm

3.Selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm

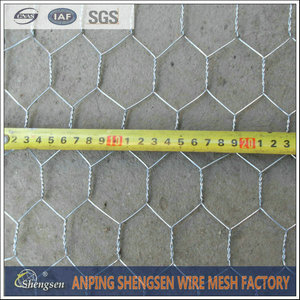

4.Mesh hole: 6*8cm,8*10cm,10*12cm,12*15cm

5.Tie wire/lacing wire: 2.2mm, 3%,5%,8% of weight

6.Zinc coated rate: 220-290g/m2

7.Size: 2x1x1m,2x1x0.5m,6x2x0.3m,as your request



Gabion Box

Opening
(mm)

Wire Diameter(Metal Wire)
(mm)

Wire Diameter (PVC Coate)/
Inner/Outside(mm)

Strands

60X80

f2.0-2.8

f2.0/3.0-2.5/3.5

3

80X100

f2.0-3.2

f2.0/3.0-2.8/3.8

3

80X120

f2.0-3.2

f2.0/3.0-2.8/3.8

3

100X120

f2.0-3.4

f2.0/3.0-2.8/3.8

3

100X150

f2.0-3.4

f2.0/3.0-2.8/3.8

3

120X150

f2.0-4.0

f2.0/3.0-3.0/4.0

3
