Price:US $0.8 - 3 / Square Meter

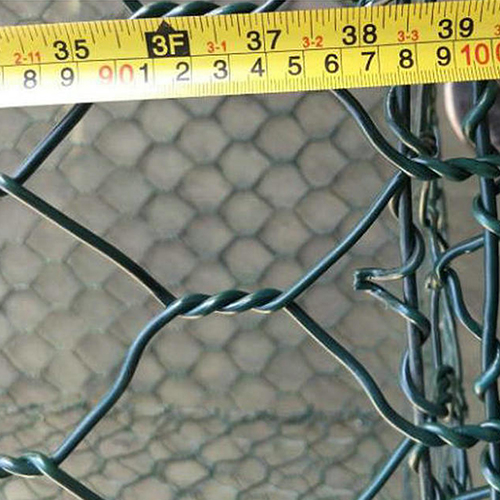

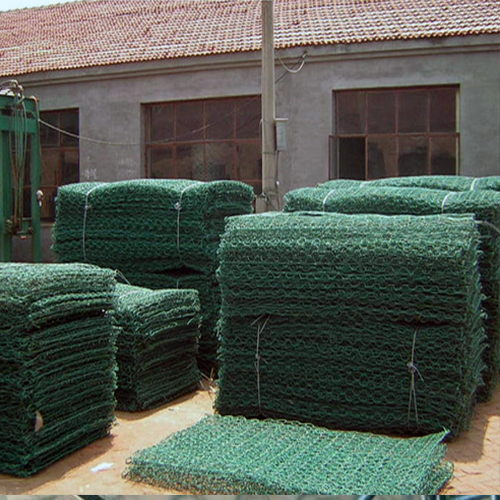

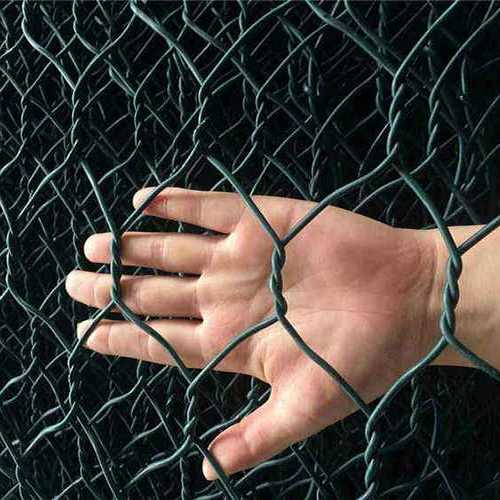

PVC coated gabion boxes are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles.
| Material | galvanized wire ,galfan wire and PVC coated wire , |
| Gabion mesh wire | 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm |
| Gabion selvedge wire | 2.4mm,2.7mm,3mm,3.4mm,4mm |
| Gabion lacing wire | normally 2.2mm |
| Gabion box mesh hole | 6*8cm,8*10cm,10*12cm,12*15cm |
| Gabion box Zinc coating | 250-300/m2 |
| Gabion box PVC color | darkgree, gray ,black , etc. |
| Gabion L x W x H (in meter) | Central Diaphragm Counts (in pc) | Volume (in cum) |
| 2 x 1 x 1 | 1 | 2 |
| 3 x 1 x 1 | 2 | 3 |
| 4 x 1 x 1 | 4 | 4 |
| 6 x 1x 1 | 6 | 6 |
Applications:
earth control, soil conservation, protection of highway, railway and velvert against rock fall, barriers at rivers, marine and seawall protection, lining of steep slopes, revetment for lakes and seashores, lining of canals and dams, protection of islands, anti noise barriers, construction of the gravitation abutment wall, river training and flood control.
Gabion's advantages
compared with conventional construction material in strength, permeability, durability, flexibility, economy and ecology:
1. Strength
The gabion boxes and mattresses made of hexagonal double twisted wire mesh provide adequate strength to the structure to withstand forces generated by retained earth and flowing water.
2. Flexibility
The flexibility of the double twisted hexagonal mesh helps in withstanding differential settlement without fracturing the structure particularly when a structure is installed on unstable and uneven ground or in an area where scours from waves or current can undermine etc.
3. Permeability
The permeable nature of the gabion eliminates build up of hydrostatic pressure behind the retaining structure and also uplifts caused by turbulent flows.
4. Durability
Gabion structures are heavy monolithic gravity units able to withstand earth's thrust. It's efficiency increases instead of decreasing with age since further consolidation takes place as silt and soil collect on the voids and vegetation establishes itself.
5. Economy
Cost effective and efficient structures compared to any other rigid structures for similar function.
Installed on a reasonably plain surface, does not require heavy foundation preparations.
No need of skilled labour due to its simple construction and assembly at site.
No need of any permanent drainage system.
Ease of handling of large elements results in substantial increase in speed of construction, accelerating completion dates.
6. Ecology
Gabion structures permit the growth of vegetation and maintain the existing environment.
Packing Details:
1. compacted before packaging.
2. Plastic packaging outside and on the pallet. or according to the customers' requirment
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment:30% T/T in advance ,balance again the copy of the B/L
Price:US $0.8 - 3 / Square Meter
PVC coated gabion boxes are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles.
| Material | galvanized wire ,galfan wire and PVC coated wire , |
| Gabion mesh wire | 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm |
| Gabion selvedge wire | 2.4mm,2.7mm,3mm,3.4mm,4mm |
| Gabion lacing wire | normally 2.2mm |
| Gabion box mesh hole | 6*8cm,8*10cm,10*12cm,12*15cm |
| Gabion box Zinc coating | 250-300/m2 |
| Gabion box PVC color | darkgree, gray ,black , etc. |
| Gabion L x W x H (in meter) | Central Diaphragm Counts (in pc) | Volume (in cum) |
| 2 x 1 x 1 | 1 | 2 |
| 3 x 1 x 1 | 2 | 3 |
| 4 x 1 x 1 | 4 | 4 |
| 6 x 1x 1 | 6 | 6 |
Applications:
earth control, soil conservation, protection of highway, railway and velvert against rock fall, barriers at rivers, marine and seawall protection, lining of steep slopes, revetment for lakes and seashores, lining of canals and dams, protection of islands, anti noise barriers, construction of the gravitation abutment wall, river training and flood control.
Gabion's advantages
compared with conventional construction material in strength, permeability, durability, flexibility, economy and ecology:
1. Strength
The gabion boxes and mattresses made of hexagonal double twisted wire mesh provide adequate strength to the structure to withstand forces generated by retained earth and flowing water.
2. Flexibility
The flexibility of the double twisted hexagonal mesh helps in withstanding differential settlement without fracturing the structure particularly when a structure is installed on unstable and uneven ground or in an area where scours from waves or current can undermine etc.
3. Permeability
The permeable nature of the gabion eliminates build up of hydrostatic pressure behind the retaining structure and also uplifts caused by turbulent flows.
4. Durability
Gabion structures are heavy monolithic gravity units able to withstand earth's thrust. It's efficiency increases instead of decreasing with age since further consolidation takes place as silt and soil collect on the voids and vegetation establishes itself.
5. Economy
Cost effective and efficient structures compared to any other rigid structures for similar function.
Installed on a reasonably plain surface, does not require heavy foundation preparations.
No need of skilled labour due to its simple construction and assembly at site.
No need of any permanent drainage system.
Ease of handling of large elements results in substantial increase in speed of construction, accelerating completion dates.
6. Ecology
Gabion structures permit the growth of vegetation and maintain the existing environment.
Packing Details:
1. compacted before packaging.
2. Plastic packaging outside and on the pallet. or according to the customers' requirment
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment:30% T/T in advance ,balance again the copy of the B/L
