Gabion Mesh


Price:US $0.8 - 3 / Square Meter

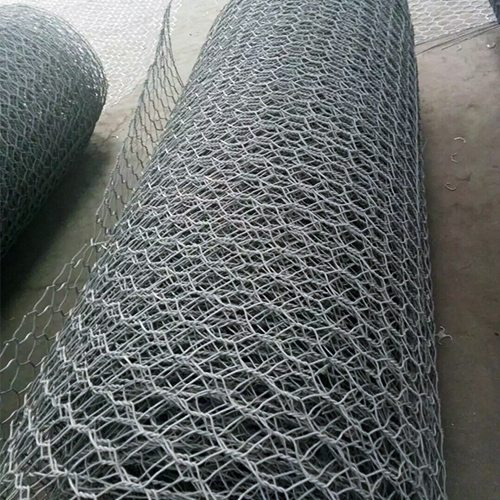

Gabion mesh is also called gabion basket. It is made of double twisted wire with hexagonal mesh prevent the meshes from unravelling, thus avoiding the deterioration of the gabion in case of an accidental cut during operation.

Material : Galvanized iron wire and PVC coated wire,Galfan(95%zinc-5%Alu Alloy)low carbon steel wire

Weaving style : Straight twist , reverse twist, double twist

Surface treatment : PVC coated or galvanized


Mesh size

Wire diameter

Wire diameter(PVC coated)

Box size

60x80 mm

2.0-2.8 mm

2.0/3.0-2.5/3.5 mm

1*1*3;1*1*0.5 m

80x100 mm

2.0-3.2 mm

2.0/3.0-2.8/3.8 mm

2*1*0.3;2*1*0.5 m

80x120 mm

2.0-3.2 mm

2.0/3.0-2.8/3.8 mm

2*1*1;4*2*1 m

100x120 mm

2.0-3.4 mm

2.0/3.0-2.8/3.8 mm

6*2*0.3;6*2*1 m

100x150 mm

2.0-3.4 mm

2.0/3.0-2.8/3.8 mm

As your request

120x150 mm

2.0-4.0 mm

2.0/3.0-3.0/4.0 mm

As your request


Application :

• Control and guide of water or flood

• Flood bank or guiding bank

• Prevention of rock breaking

• Water and soil protection

• Bridge protection

• Strengthening structure of soil

• Protection engineering of seaside area

• Seaport engineering

• Isolation walls

• Protection of road

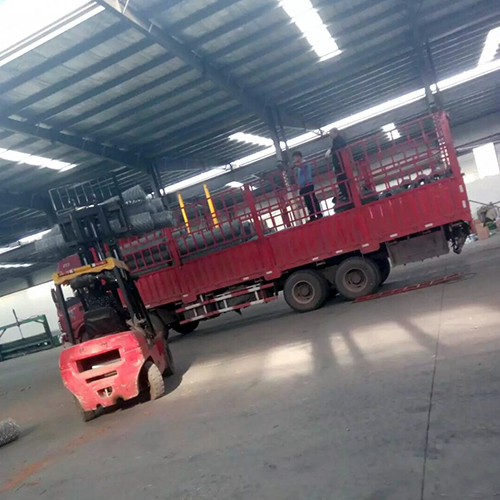

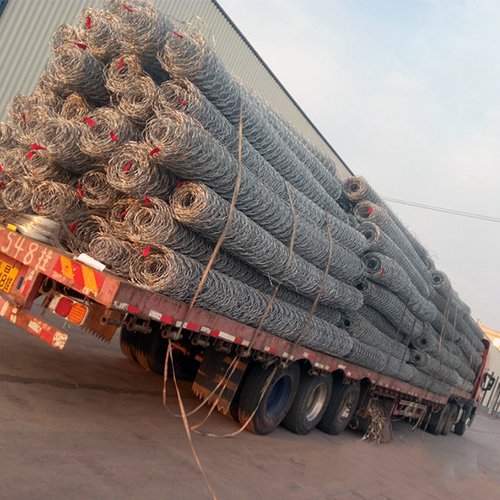

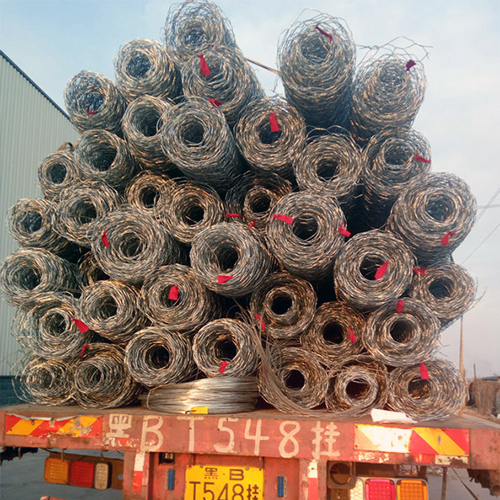

Packing & Delivery

Packing Details : in wooden pallet and plastic film outside or as your requirement

Delivery Details : about 15-35 days after your deposit.



Q..When can I get the price?

A.after we get your inquiry we will quote you within 24 hours

Q. When will you loading the products?

A: Usually it takes about 10-15days after receiving the advance payment to send out the goods by sea.

Q. What is the terms of payment?

A: Most customers choose 30%TT advanced payment, balance against copy of BL
