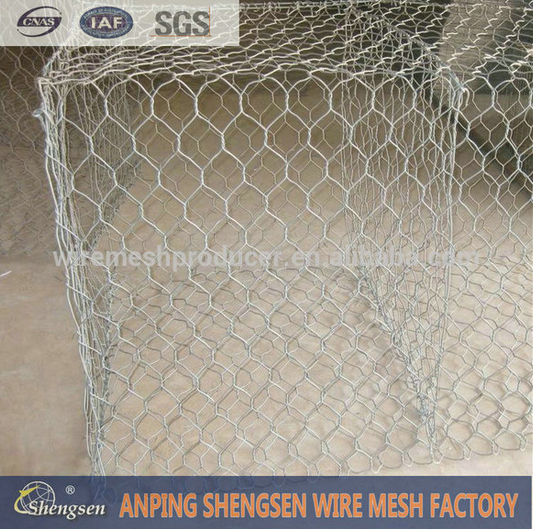

Gabion Basket

Gabions can be manufactured in welded mesh or woven wire.Welded mesh gabions are faster to erect and do not need tensioning .This allows them to keep their shap,to be free from bulges and depressions and fit easily against wall. It is possible to cut holes in them if needed to pass pipes etc through and they can be machine filled.



Gabions are rectagular wire mesh baskets filled with rock at the project site
to form flexible,permeable,monolithic structures such as retaining walls for
commercial,industria and road projects.They are aslo used for erision control,
bank stabilization,channel kinings and weirs.



Specifications:

Wire Diameter:2.0-4.0mm
Length: 1-4m
Deapth: 0.3-1m
Mesh Wire Diameter: 2-4mm
Edge Wire Diameter: 2.5-5mm
Lacing Wire Diameter: 2.2mm
Mesh Size: 50*50mm,60*80mm,
80*100mm,100*120mm,100*150
mm,120*150mm.
PVC Coated Thickness: 0.4-1.2mm
