Hebei shengsen start a large number of production and sale of gabion mesh till the end of year

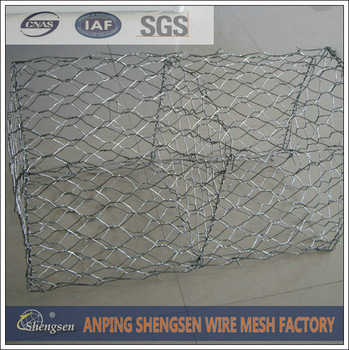

GABIONS/GABION BASKET/GABION BOX/GABION CAGES
1、gabion Material:low carbon steel
Surface:
electro galvanized—15-20g/m2
hot dipped galvanized,—40-60g/m2
heavy galvanized,—240-260g/m2
Galfan wire—10Al with more than 240g zinc coating
pvc coated—dark green,grey and etc
Tensile strength:380-550N/mm2
2、Gabion Wire diameter
Mesh wire dia:2.7mm,3.0mm
Selvage wire dia:3.4mm,3.9mm
Lacing wire dia:2.0mm,2.2mm (extra1.5%-2% of total weight included)
3、 Gabion Mesh size/Aperture/Mesh Opening
60×80mm 100×120mm,70×90mm,90×110mm,90×130mm,120×150mm,160×180mm,200×250mm
4、gabion size
Popular gabion size and special ones can be made customer sized
1m×1m*×1m without diaphragm
2m×1m*×1m with 1 diaphragm
3m×1m*×1m with 2 diaphragm
6m×1m*×1m with 5 diaphragm

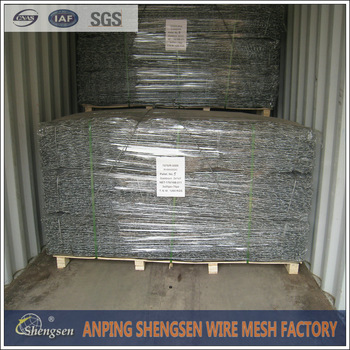

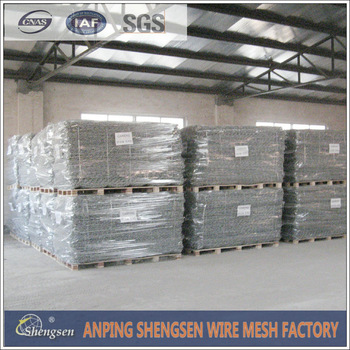

5、Gabion Packing method and quantity per container
60-65PCS per compact bundle
13tons per 20ft container
26tons per 40ft container
6、gabion production capacity and delivery time

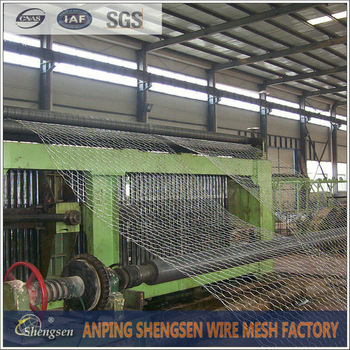

There are more than 20 Sets of weaving machines,and daily output can be reach 20,000 square meters.So delivery time is usually within 20days after deposit.
