1mm,1.5mm,2mm
SHENGSEN
73145000
| Quantity: | |
|---|---|

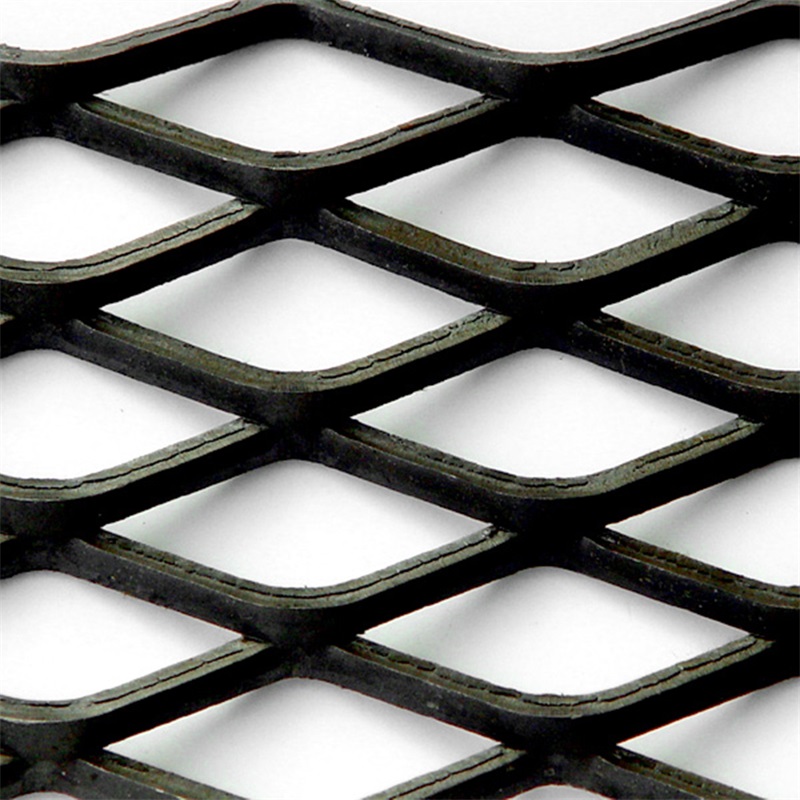

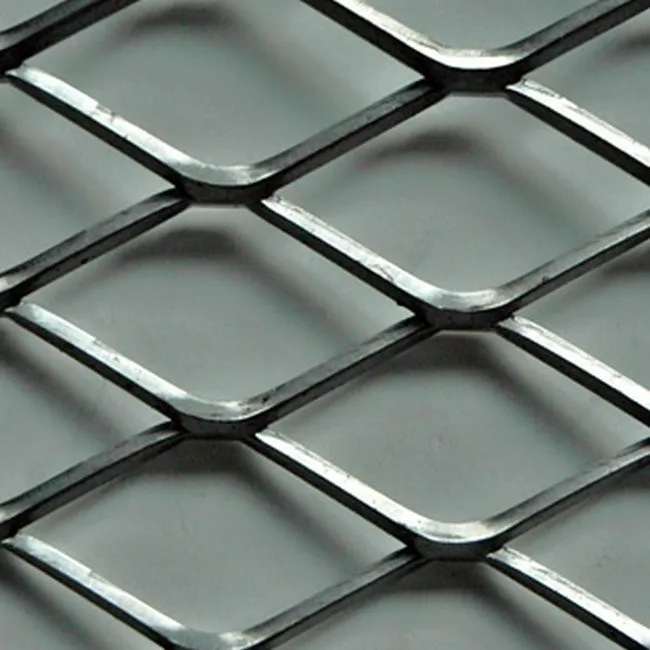

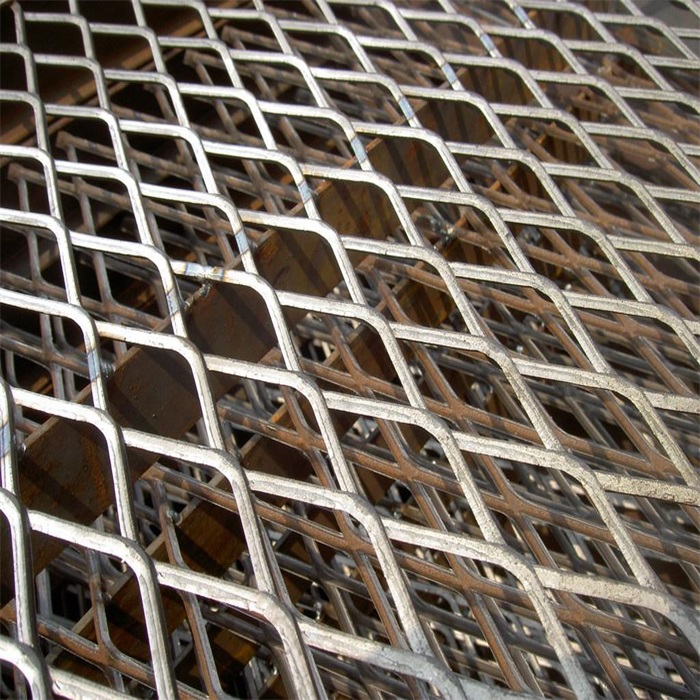

Shengsen Small Hole Expanded Metal Mesh
Expanded metal is an intermediate raw material that allows light and air to flow freely through it and that has more rigidity than the sheet from which it was produced.
1.Materials : aluminium plate ,thin low carbon steel plate, stainless steel plate,Al-Mg alloy plate,
2.Types of holes : diamond , square, round , triangle scale,etc

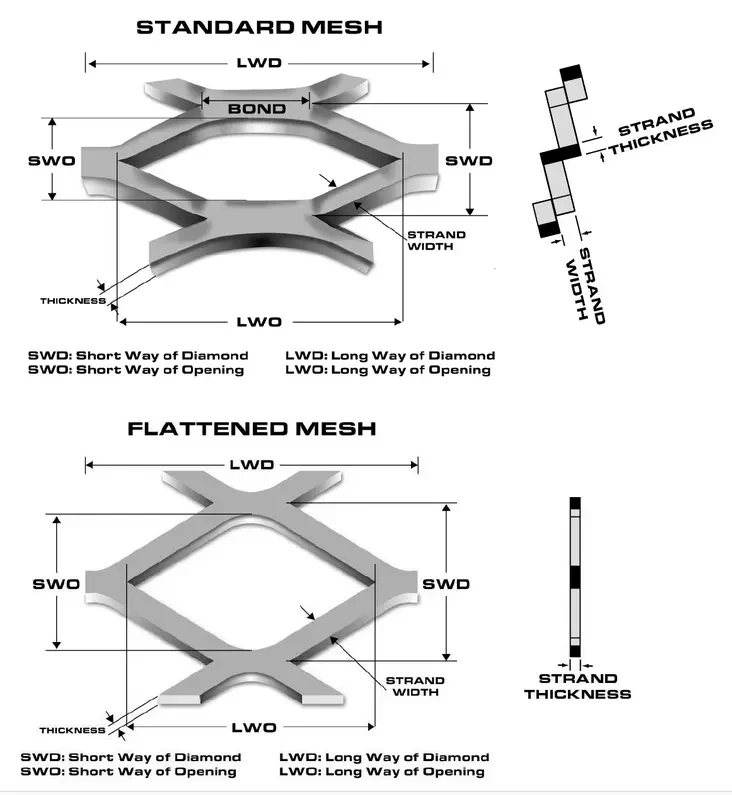

3.Type of Sizes:
LWD: 12.5-200mm
SWD: 5-80mm
Thickness: 0.3-8mm

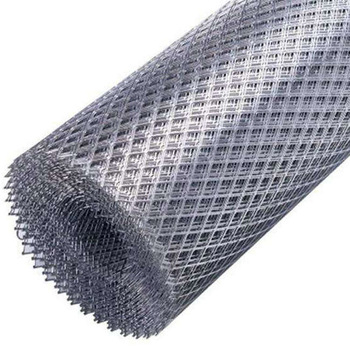

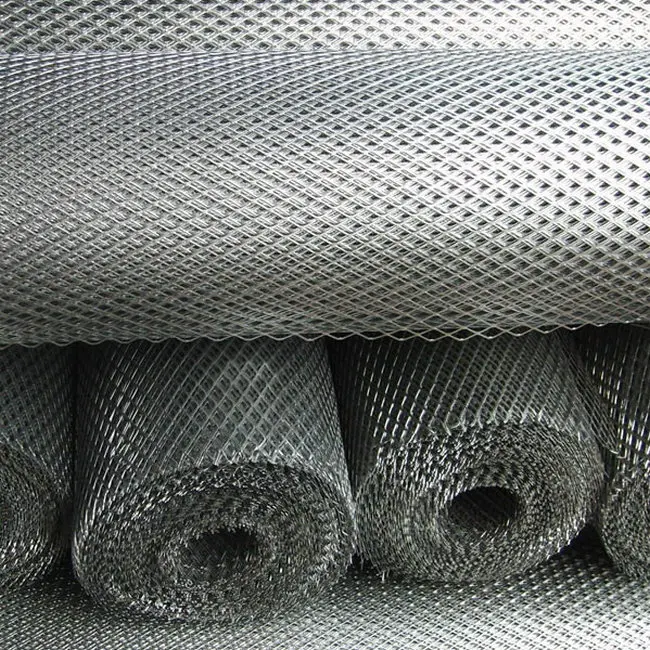

4.Packing: waterproof paper packing and woven bags or cartons in expanded metal roll mesh
5.usage :used in filter elements, medicine, paper-making, filtering, breeding, wire mesh for battery, wire mesh for satelite aerial, machina protecting , handcraft making and window screen substitute.
| Thickness | SWD | LWD | wire stems width | Width | Length | Weight |
| (mm) | (mm) | (mm) | (mm) | (m) | (m) | (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |

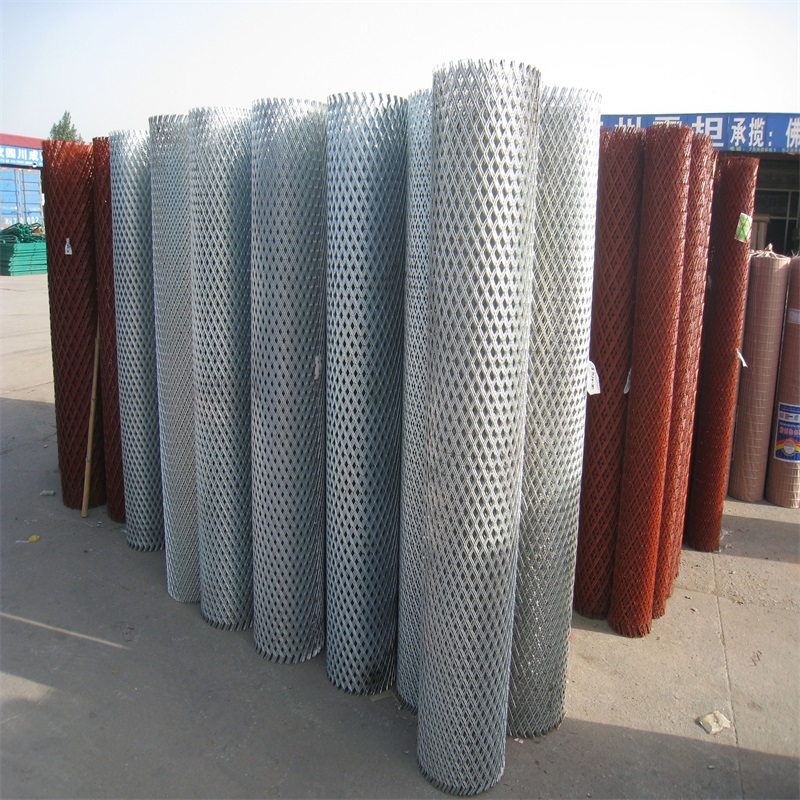

Typically wrapped with water-proof paper then shrink wrapped, carton package is available.
The expanded metal mesh is widely used for civil construction, cement pouring, machinery and equipment protection, artware manufacture, high-grade speaker net hoods. It is also be used as reinforcement in the construction industry, roads and bridges. Expanded metal mesh can also be used as fence for sports places and road greening belt. Heavy expanded metal mesh can be used for oil tank truck pedal nets, heavy machinery, as well as the working platforms, staircases and walkways of boilers, locomotives, 10,000-ton ships, etc.

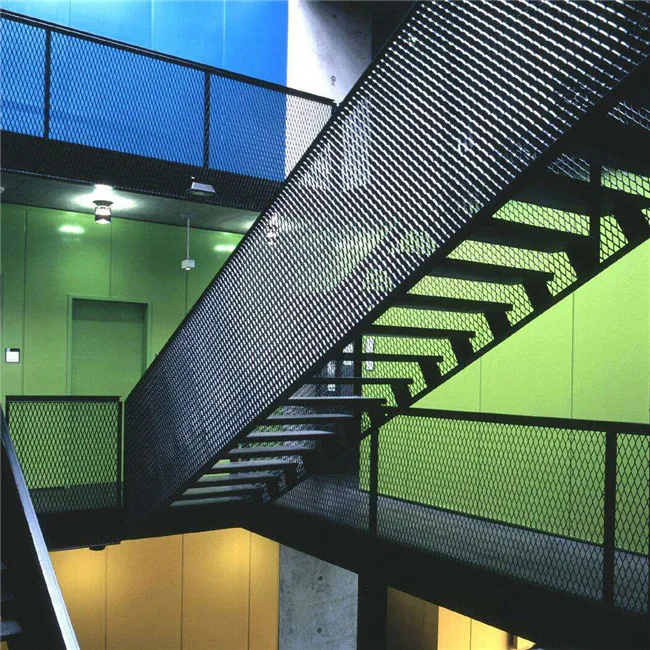

Walkway, stairtreads and platforms
,Window guards / grilles
• Wall reinforcement
• Perimeter fencing / gates
• Top-of-wall spikes
• Pedestrian safety barriers
• Motorway anti-glare screens
1.Can you make custom panels if I have a design?
Yes,we can OEM according to your detailed drawings.
2. Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
3. What type of materials do you use for your products?
Carbon steel plate,Stainless steel plate,Aluminum and Aluminum Alloy plate,Cooper plate,Galvanized plate etc.
Special material also available
4. Do you have any certificate?
Yes,we have ISO9001,ISO14001,BV certificate,SGS certificate.
