Views: 18 Author: Site Editor Publish Time: 2017-06-08 Origin: Site Inquire
Zinc coating: 40g-60g
tensile strength: 350-550Mpa
material: Q195 low carbon

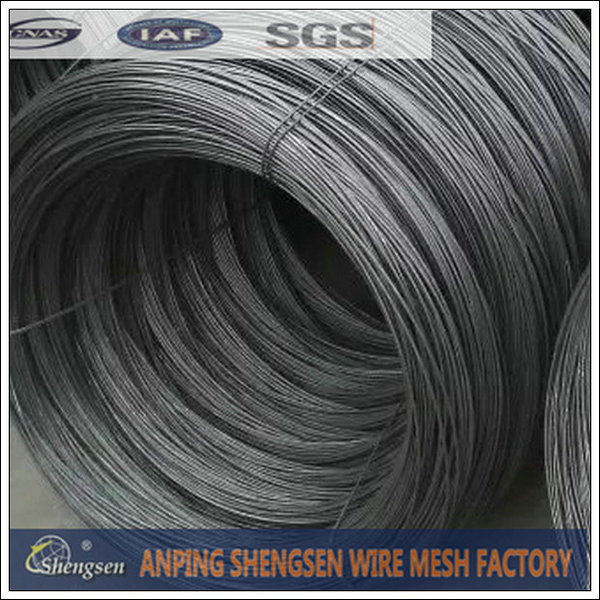

The name of the picture is Q195 wire rod, which is the origin of other products. Galvanized wire and all other wire mesh are manufactured by wire rod. Shengsen buy this material from SHANXI ZHONGYANG IRON and STEEL CO., LTD, which is the biggest steel factory in China. its element composition is as follows:C≤0.07; S≤0.023; Si≤0.09; Mn≤0.32; P≤0.025.Because This type of wire rod has less Impurities, Q195 is fit for drawing. The diameter is 6.5mm. Generally,Daily output of Shengsen is 120 tons.(electro and hot-dipped are separately 60 tons)

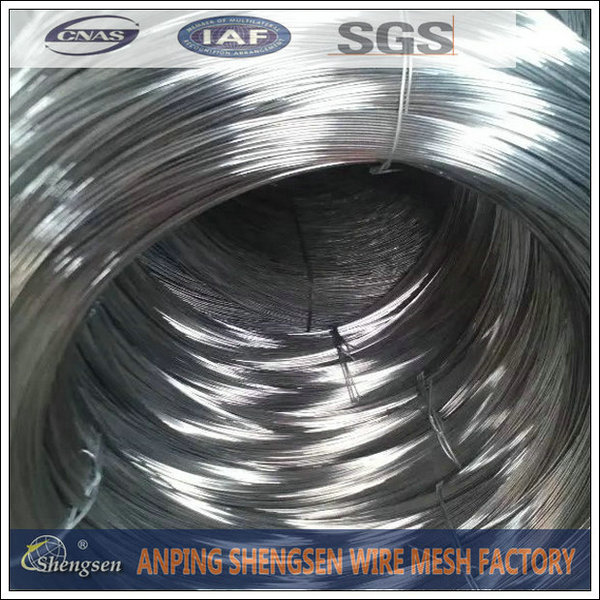

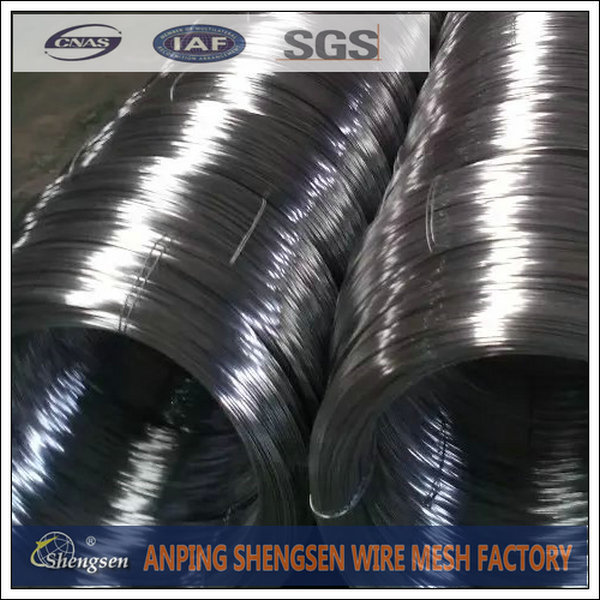

Galvanized wire is classified into hot dipped galvanized wire and electronic galvanized wire according to its technology. This is the first type.
Hot dipped galvanized wre :8#-38#(3.8mm-0.19mm), zinc coating for hot dipped galvanized iron wire about 40gram-230gram.
Application : Used in wire mesh , artware , metal hose , binding for agriculture and construction , etc.

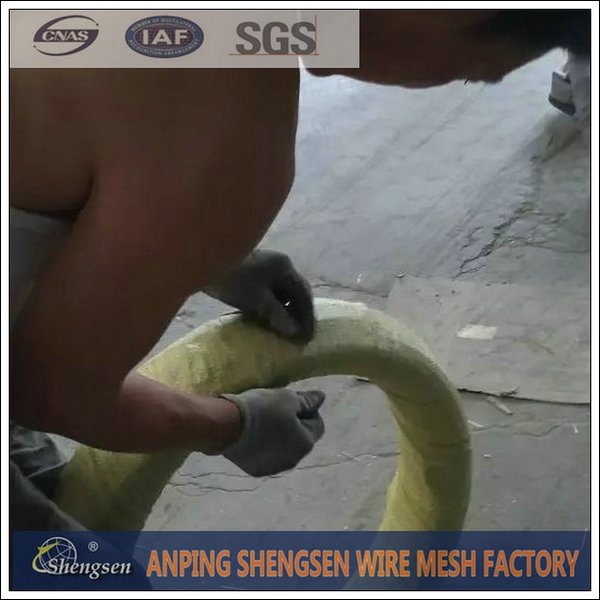

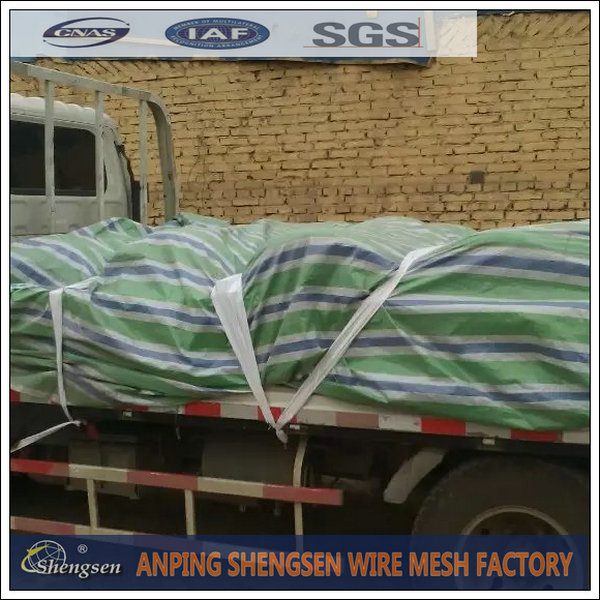

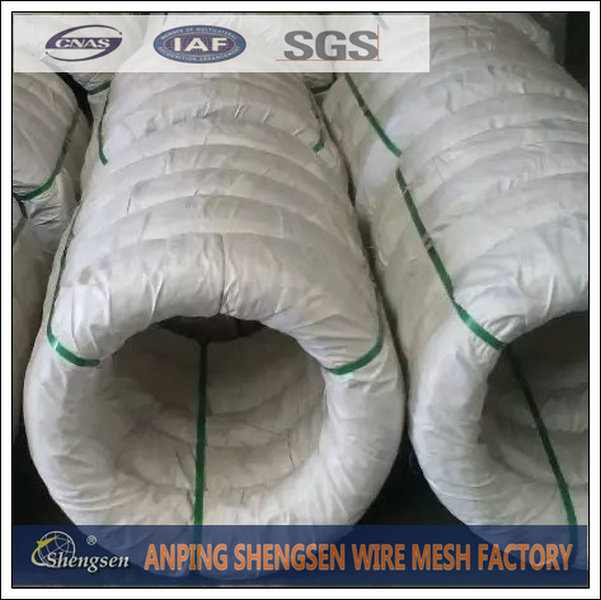

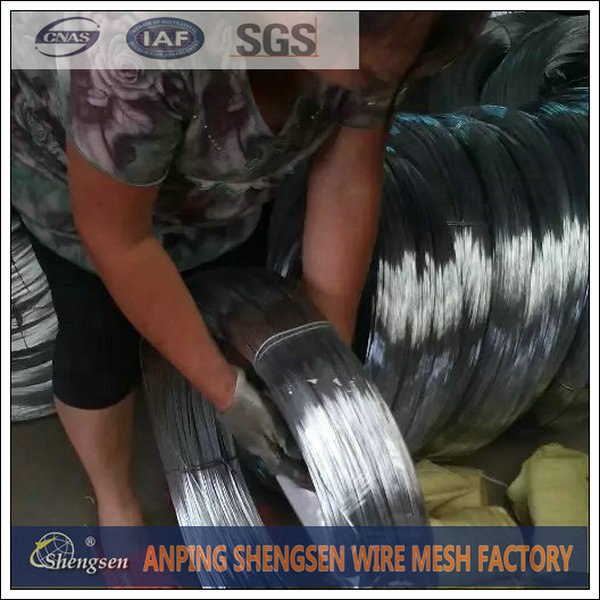

1. Inside with plastic film, outside weaving bag. 2. Inside with plastic film, outside hessian cloth.
Packing
Size (mm) | Coil Size | Spool Packing | Big Coil Packing | |
ID (mm) | OD (mm) | |||
0.15-0.26 | 6 inch | 1-14kg/spool | ||
0.27-0.60 | 8 inch | 1-100kg/spool | ||
0.61-1.60 | 12/14/16 inch | 1-100kg/spool | 250-400 | 400-770 |
1.61-6.00 | 14-500kg/spool | 450 | 800 | |
508 | 840 | |||
Recommended Products
 |  |  |  |
Hebei Shengsen Metal Products Co.,Ltd. is one of the
mesh in Anping, Hebei Province of China.
leading manufacturer of galvanized wire as well as wire
According to customer's requirement to provide the similar or the sample.
Specialize in customer’s design to meet your needs.
Customer feedback within 24-hours
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
More details,pls feel free to contact me. Email：shengsen@cnwire.org
