Gabion mesh price material and use

Views: 18     Author: Site Editor     Publish Time: 2018-08-29      Origin: Site Inquire

Gabion mesh price material and use

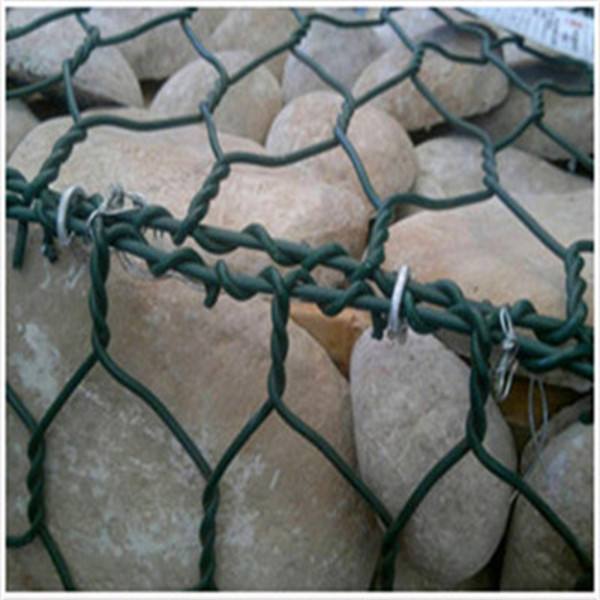

The galvanized gabion mesh is also called the Gebin network and the ecological grid. In recent years, it has been widely used in a new material structure in transportation, water conservancy, municipal, garden, soil and water conservation and other engineering projects. The galvanized gabion mesh is a low-carbon high-galvanized steel wire or a 5% aluminum-zinc rare earth alloy coated steel wire (or homogenous coated polymer steel wire) which is resistant to corrosion and wear, and is woven into a multi-strand by a mechanical twisting of two wires. The mesh of the hexagonal and hexagonal meshes shall have a length of the double-wire hinge portion of not less than 5 cm so as not to damage the protective coating of the steel wire.

Gabion mesh

1、gabion mesh price
The price of galvanized gabion mesh is usually in square meters. In addition, the specifications of the grid are various and the price is difficult to determine. Customers can contact the manufacturer according to their own requirements and detailed specifications to get an accurate quotation.

Common specifications for galvanized gabion mesh are: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m, and can be produced on request. The surface protection state is hot-dip galvanized, galvanized aluminum alloy, coated with PVC, etc.

Gabion mesh

2、gabion mesh material
The gabion mesh material is generally galvanized wire, but it can be divided into many kinds of subdivisions. The following is a detailed classification analysis of these subdivided galvanized wire materials.
High-quality low-carbon steel wire, the diameter of steel wire is 2.0MM-4.0MM, the tensile strength of steel wire is not less than 380Mpa, the surface of steel wire is protected by hot-dip galvanizing, the thickness of galvanized protective layer is made according to customer requirements, and the galvanizing capacity is the largest. Up to 300g/m2. Zinc-5% aluminum-mixed rare earth alloy steel wire: (also known as Galvan) steel wire, which is an emerging new kind of new material, corrosion resistance is more than 3 times that of traditional pure galvanizing, steel wire The diameter of the wire can reach 1.0MM-3.0MM, and the tensile strength of the steel wire is not less than 1380Mpa.

Gabion mesh

3、 gabion mesh use

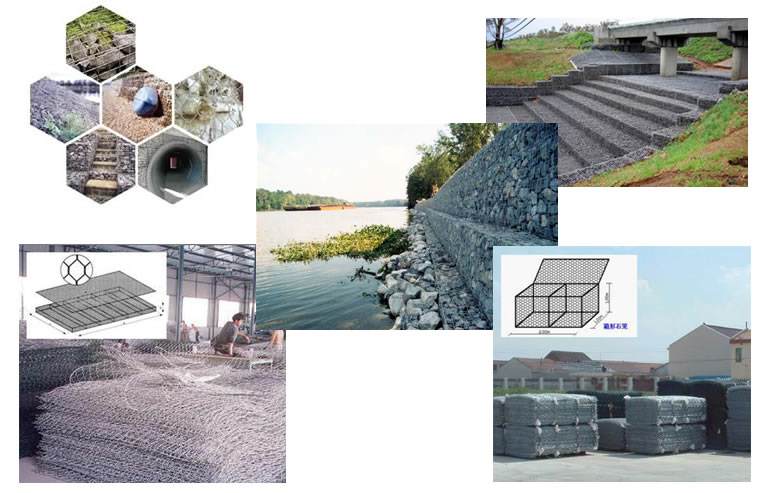

Gabion mesh box controls and guides rivers and floods; Gebin cage flood dam and diversion dam; gabion mesh cushion rock protection; Gebin cage prevents water and soil loss; gabion mesh|Gabin bridge protection; Gebin network Soil structure; gabion mesh beach defense. The structure can be used for slope support, foundation pit support, mountain rock face netting, slope planting (greening), gabion mesh can also be made into gabion mesh box, gabion mesh pad for rivers, dams and seawalls. Scour protection and reservoir and river closure. Control and guide rivers and floods.
