How to calculate the tensile performance parameters of Gabion steel wire

How to calculate the tensile performance parameters of Gabion steel wire

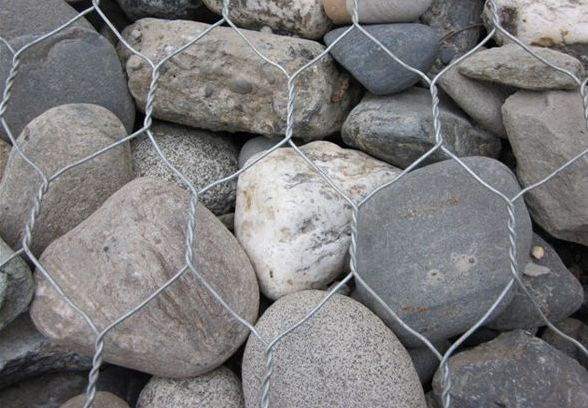

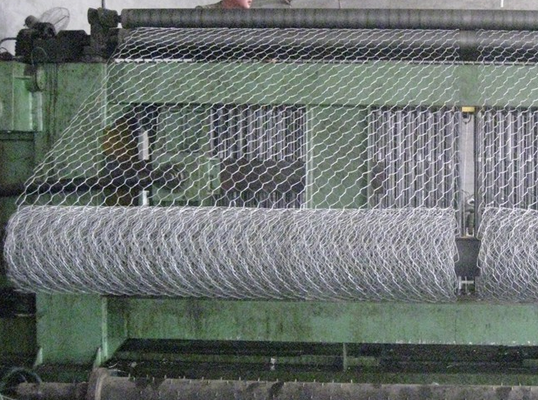

Gabion is a machine that is woven with a heavy-duty hexagonal net. The Gabion box is filled with stones at the construction site to form a structure that is flexible, permeable and integral, such as retaining walls, river linings, rafts and other anti-erosion engineering. .

The following details the various parameters of Gabion

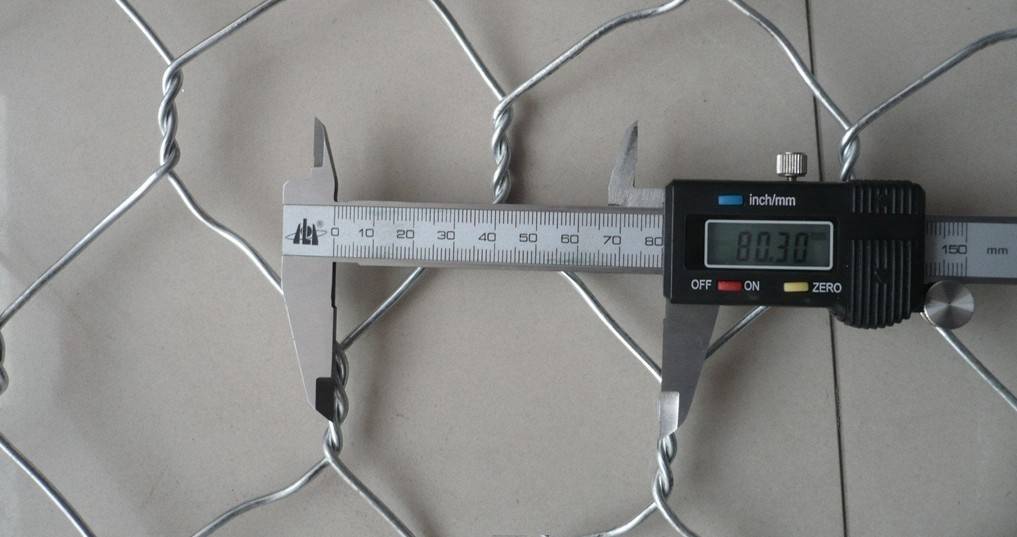

Gabion aperture: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm

Some of the two-wire stranding length must not be less than 50mm to ensure that the metal plating and PVC coating of some steel wires are not damaged.

Gabion wire diameter: Gabion is divided into three wire diameters - mesh, edge wire, tie wire

1 mesh range from 2mm to 4mm

2 side wire is generally larger than mesh, coarse 0.5mm-1mm

3 tie wire is generally smaller than the mesh, the most common is 2.2mm

Gabion wire tension: not less than 38kg/m2 380N/mm

Gabion appearance processing

• Electro-galvanizing: The maximum amount of zinc is 10g/m2, which is poor in corrosion resistance.

• Hot-dip galvanizing: the maximum amount of zinc can reach 300g/m2, and the corrosion resistance is strong.

• Galvan (zinc-aluminum alloy): This is divided into two materials, zinc-5% aluminum-mixed rare earth alloy steel wire, zinc-10% aluminum mixed rare earth alloy steel wire, super corrosion resistance

• PVC plastic bag: The thickness of the plastic bag is generally 1.0mm thick, for example: 2.7mm after the package is 3.7mm, strong anti-corrosion

Gabion spacing: add a gap per meter in the long direction of Gabion

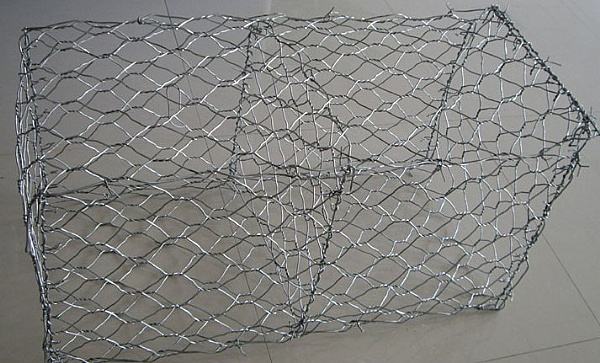

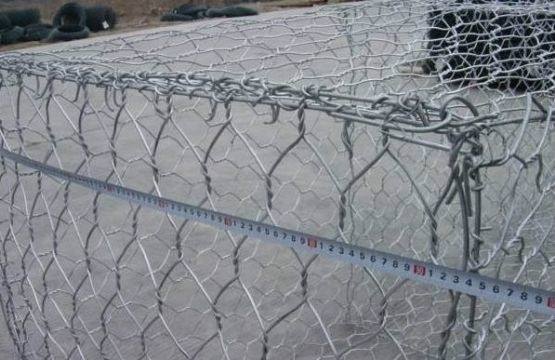

Gabion scale: generally 1*1*2m, 1*1*3m, 1*1*1.5m, other can also be customized
