What advantages does Gabion have in the production of weaving?

Views:1     Author:Site Editor     Publish Time: 2018-12-28      Origin:Site Inquire

What advantages does Gabion have in the production of weaving?

Gabion box

Gabion is mechanically woven from high corrosion resistant, high strength, ductile low carbon steel wire or PVC coated steel wire. The box structure made from this mesh is the Gabion box.

Gabion box

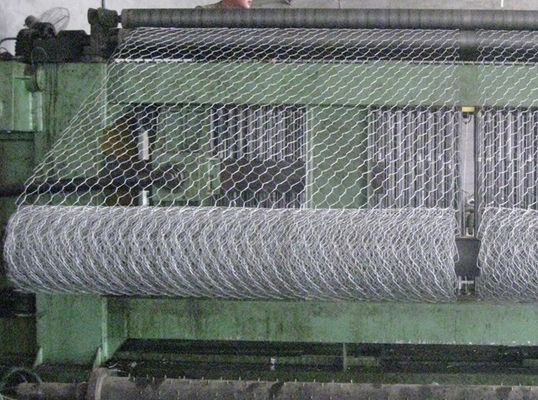

Gabion weaving production

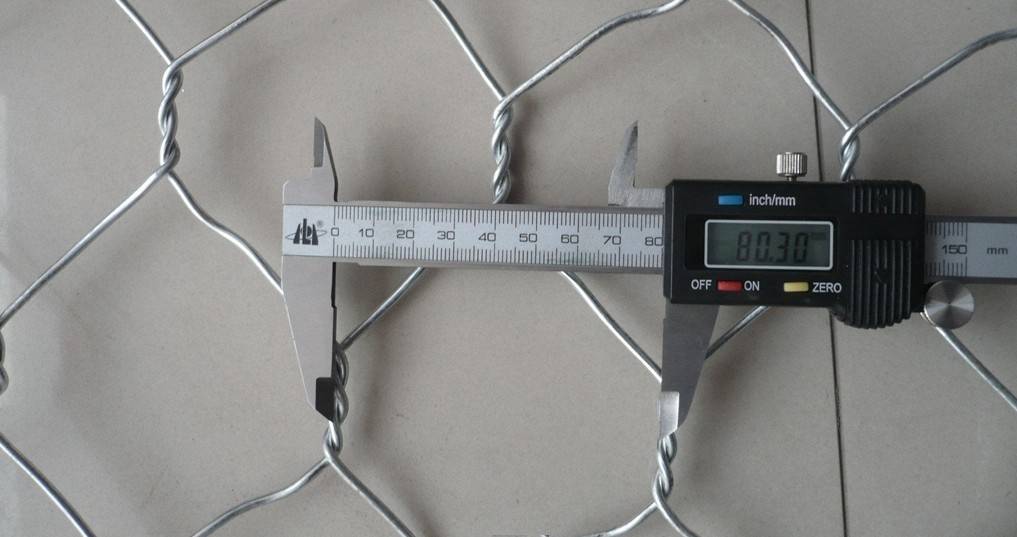

According to ASTM and EN standards, the diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of Gabion steel wire is not less than 350mpa, the weight of metal plating is generally ≥245g/m2, and the diameter of the edge line of Gabion is generally larger than the diameter of the wire. The length of the double-wire stranded portion shall not be less than 30 mm to ensure that the metal plating and the PVC coating of the stranded steel wire are not damaged.

Gabion box

Gabion use

Gabion can be used for slope support, foundation pit support, mountain rock face netting, slope planting (greening), railway highway isolation barrier, it can also be made into cages, mesh mats for rivers and dams. And the anti-scour protection of the seawall and the cages for the interception of reservoirs and rivers. The most serious disaster in rivers is that water flows to wash the river bank and destroy it. The flooding caused by it causes a lot of loss of life and property and a lot of soil erosion. Therefore, in dealing with the above problems, the application of the Gabion structure is one of the best solutions, which can permanently protect the river bank.

Gabion box

Advantages of the Gabion eco-grid structure:

1. The flexible structure can adapt to the change of the slope without being damaged, and has better safety and stability than the rigid structure;

2, strong anti-scour ability, can withstand the maximum water flow speed up to 6m / s

3. The structure is water-permeable in nature, and has strong inclusiveness to the natural action and filtration of groundwater. Suspended matter and sludge in the water can be deposited in the rockfill joint, which is conducive to the growth of natural plants. Restore the original ecological environment.

Gabion box

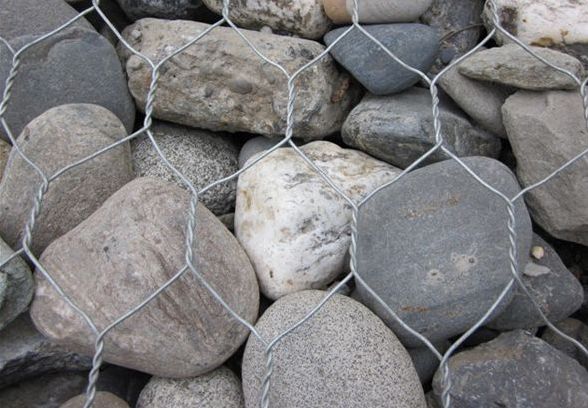

Gabion is a mesh format made of wire or polymer filaments that hold the stone in place. The wire cage is a mesh woven from iron wire or a welded structure. These two structures can be electroplated and the braided wire box can be additionally coated with PVC. The anti-weathering hard rock is used as a filler, and it will not be broken quickly due to abrasion in the stone box or stone cage sinking. Stone cages with different types of stone have different characteristics. The multi-angled stone can be interlocked with each other very well, and the Gabion filled with it is not easily deformed.

Gabion box
